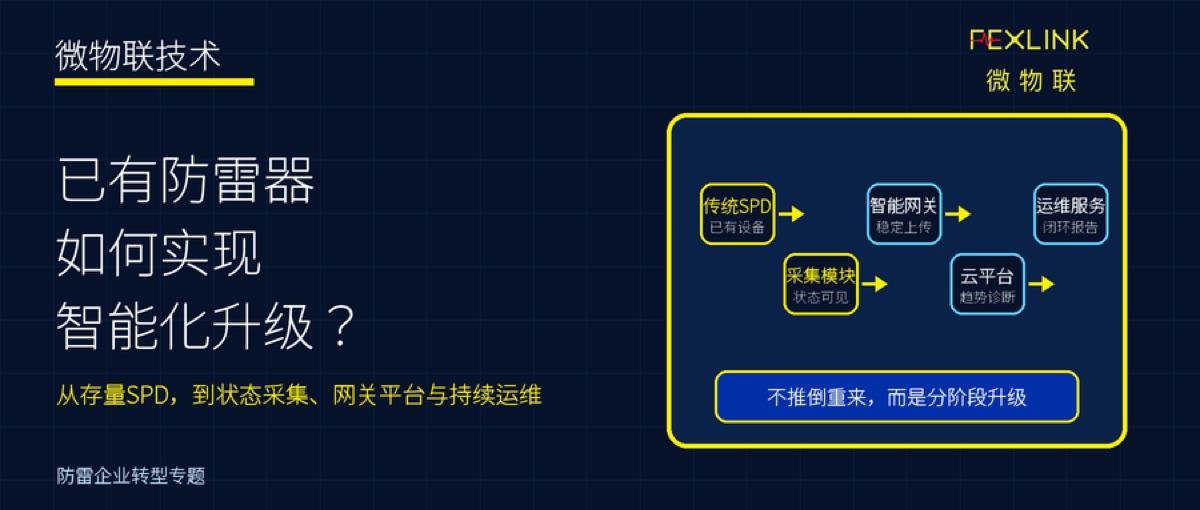

Many customer sites do not lack a lightning protection system. There are SPDs in distribution cabinets, signal lightning protectors in low-voltage boxes, lightning protection boxes in equipment rooms, and air-termination, down-conductor, and grounding systems on buildings, and the project has also undergone lightning protection testing.
But the problem is that after the system is put into operation, many key statuses remain invisible: whether the SPD has disconnected, whether it has degraded, whether leakage current has risen, whether temperature is abnormal, whether grounding has changed, whether a lightning strike or surge has occurred, and whether anyone handled the anomaly afterward.

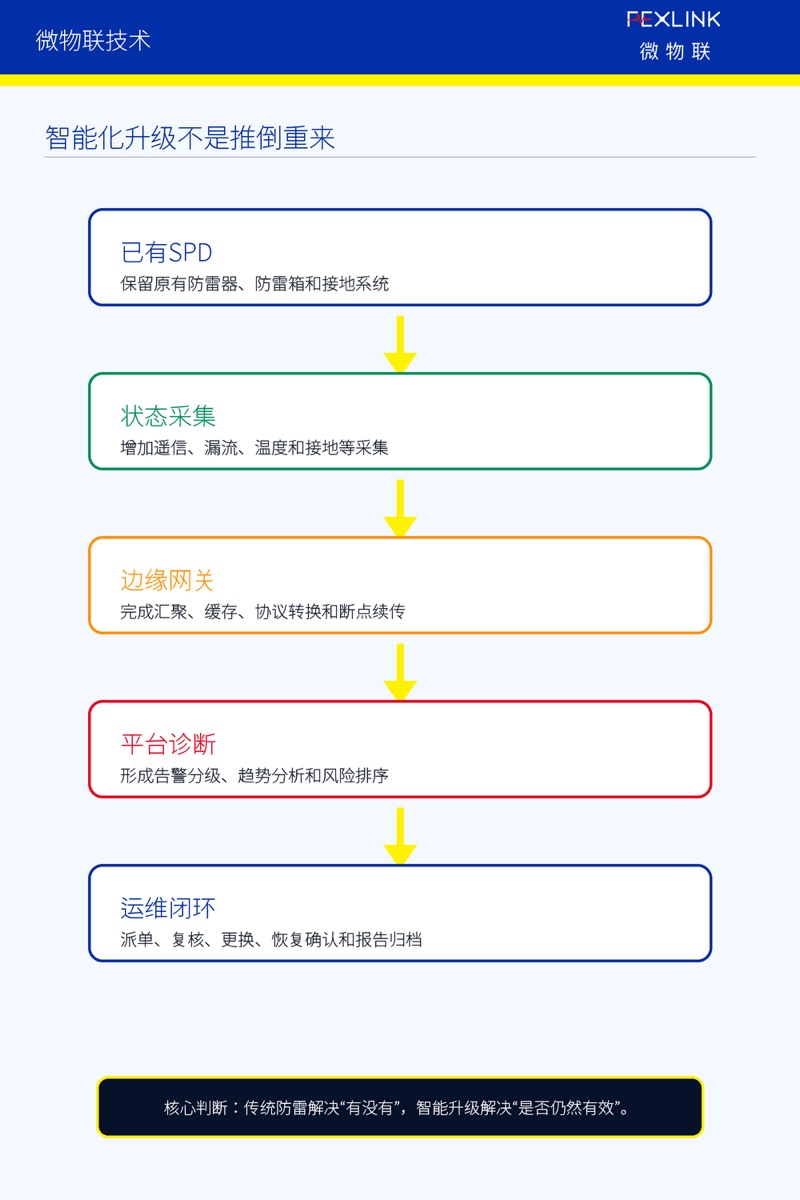

Therefore, an intelligent retrofit does not negate the original lightning protection system; rather, it fills in the visibility gap of the original system during the operation phase. A traditional lightning protection system answers "whether protection exists," while an intelligent upgrade answers "whether the protection is still effective."

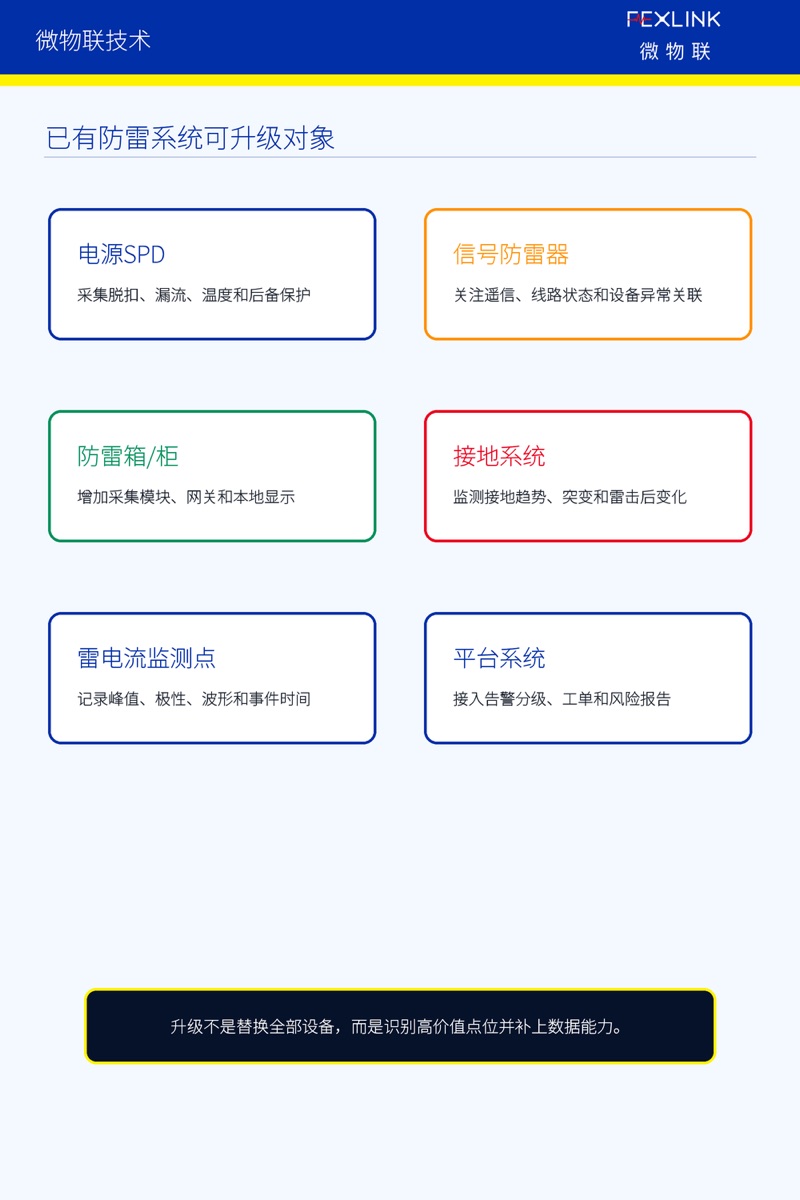

1. What Upgrade Targets Do Existing Lightning Protection Systems Usually Have?
The first category is power SPDs. Typical points include SPDs in first-level distribution cabinets, second-level distribution cabinets, end distribution boxes, the input and output stages of UPS, the AC side of PV inverters, and the PCS side of energy storage. The data that can be upgraded includes disconnection status, leakage current, temperature, backup protection status, lightning strike counts, and life trends.
The second category is signal and communication lightning protectors. Common targets include RS485 protectors, network protectors, video protectors, instrument signal protectors, antenna feed protectors, and control line protectors. These points are usually small in space and widely distributed, so not all of them are suitable for deep intelligence. It is better to first select key equipment entry points and high-value circuits for prioritized retrofits.
The third category is lightning protection boxes and lightning protection cabinets. Many traditional lightning protection boxes already contain SPD modules, backup protection, indicator lights, remote signaling terminals, and grounding terminals, making them high-value entry points for the intelligent retrofit of existing installations. Capabilities such as remote signaling acquisition, leakage current acquisition, temperature acquisition, cabinet door status, ambient temperature and humidity, communication gateways, local display, and platform upload can be added.
The fourth category is grounding systems. Grounding is not a static value in a test report, but an operational state affected by corrosion, construction disturbance, soil moisture, loose connections, and lightning strike impacts. It covers building grounding, power distribution system grounding, lightning protection grounding, communication grounding, equipment protective grounding, antistatic grounding in tank farms, and grounding of PV and wind farm stations.
The fifth category is lightning current monitoring points. Not every project must add lightning current monitoring, but high-rise buildings, equipment rooms, wind farms, PV power plants, communication base stations, railway signaling systems, petrochemical tank farms, and important electrical equipment entry points can all be equipped with lightning current monitoring points according to risk levels.

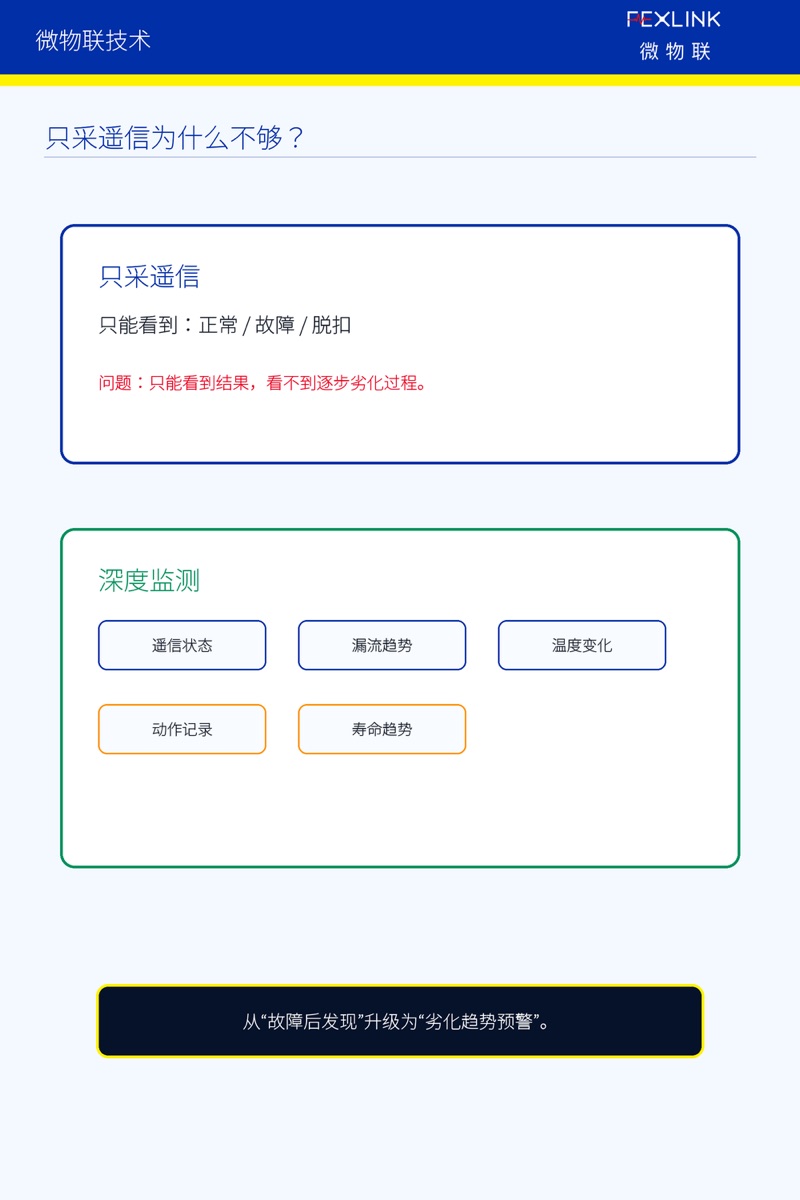

2. An Intelligent Upgrade Cannot Rely on Remote Signaling Acquisition Alone
The first retrofit step in many existing projects is to connect the SPD remote signaling to an acquisition module. This step is valuable, because it allows the platform to remotely know whether the SPD has disconnected or failed. However, if only remote signaling is acquired, the system can still only see the "result," not the "process."
Traditional SPD remote signaling can usually only output normal or fault. It cannot tell the user whether leakage current is gradually rising, whether temperature is abnormal, whether degradation occurred after a lightning strike, whether repeated surges within a short period are accumulating, or whether the life trend is declining.
Leakage current and temperature are closer to the SPD degradation process. SPD degradation usually does not happen in an instant; rising leakage current, rising temperature, and increasing surge counts often allow the system to see risk trends before disconnection occurs.
Grounding status must not be missing either. If the SPD is normal but the grounding path is abnormal, the protection effect can still be affected. Therefore, SPD status should ideally be viewed in conjunction with grounding status, forming a complete risk chain of "SPD status + grounding status + lightning current events + equipment alarms."
Lightning current events, in turn, can explain many on-site faults. After equipment damage, without event data one can only say "it might have been a lightning strike." If the system records the strike time, peak, polarity, waveform, and event location, it becomes easier to determine whether the equipment anomaly is related to a lightning strike or surge.

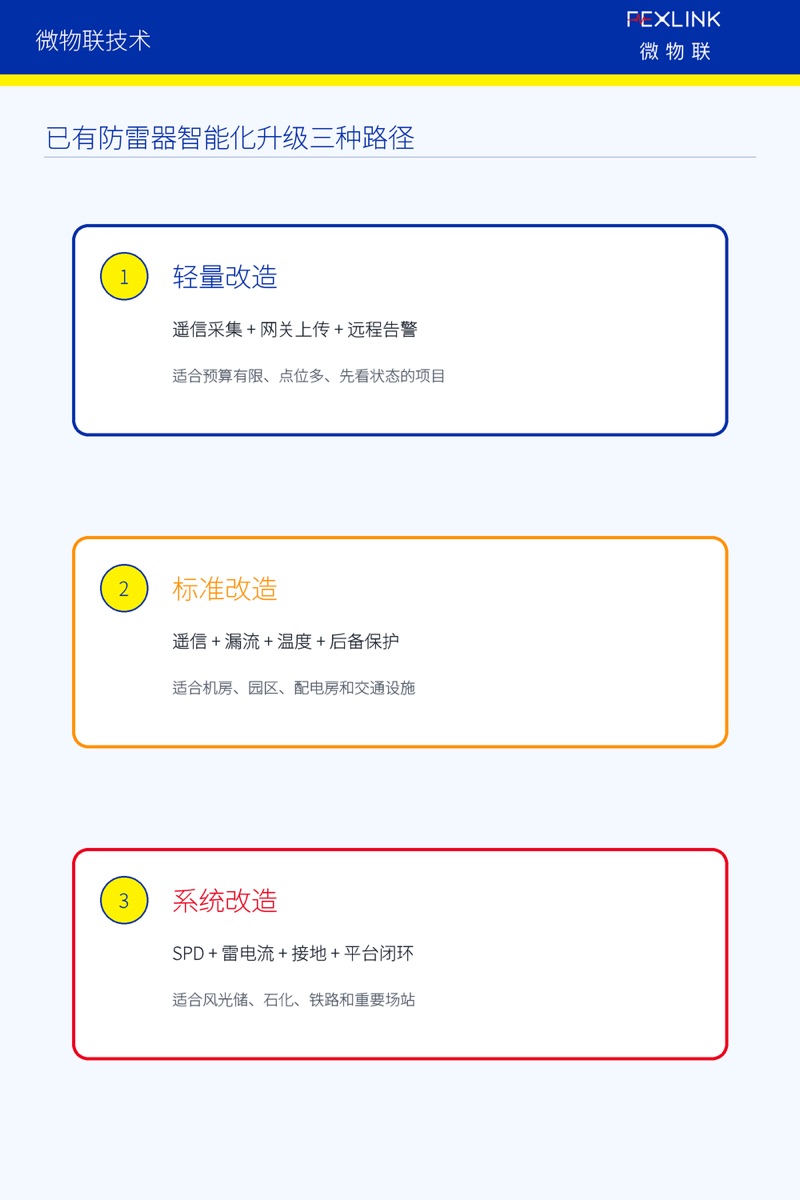

3. Three Paths for the Intelligent Upgrade of Existing SPDs
The first path is a lightweight retrofit that starts with acquiring remote signaling and online status. It suits projects with limited budgets, many points, existing SPDs with remote signaling terminals, and customers who first want to view status remotely. The retrofit includes remote signaling acquisition modules, communication gateways, device online status, platform alarms, and simple work order records. Its advantages are low cost, fast installation, and suitability for large volumes of existing projects; its limitation is that only disconnection or faults can be seen, making degradation trend assessment difficult.
The second path is a standard retrofit that adds leakage current, temperature, and backup protection monitoring. It suits scenarios such as distribution rooms, data centers, equipment rooms, industrial parks, transportation facilities, communication base stations, and renewable energy stations. The retrofit includes SPD remote signaling, leakage current monitoring, temperature monitoring, backup protection status, enclosure environment status, smart gateways, and platform alarm grading. Its value lies in upgrading from "detecting faults after they occur" to "early warning of degradation trends."
The third path is a system retrofit that adds lightning current monitoring, grounding monitoring, and platform closure. It suits wind farms, solar PV and energy storage, petrochemical plants, railways, highways, large industrial parks, and critical equipment rooms. The retrofit includes SPD status monitoring, lightning current monitoring, online grounding resistance monitoring, multi-point data aggregation, edge gateways, cloud platform analytics, work order closure, and risk reports. Its value lies in upgrading from a single intelligent device to a complete intelligent lightning protection system.

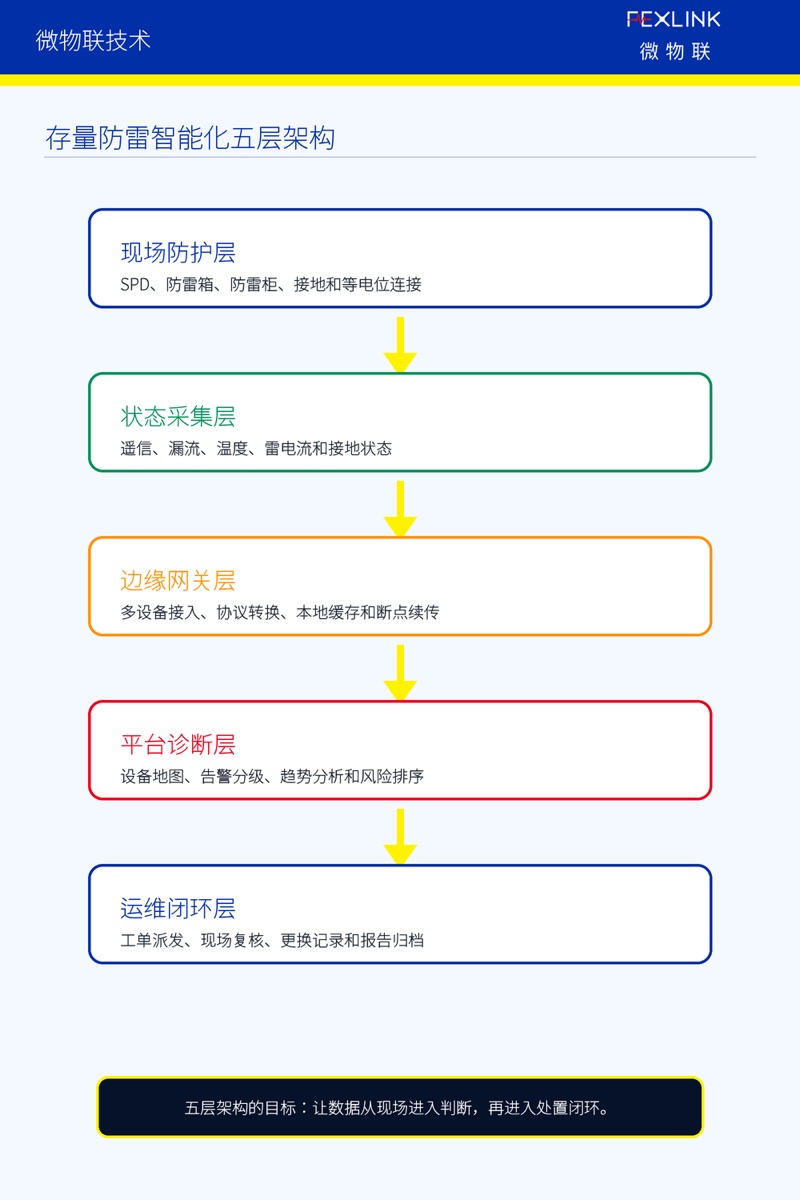

4. How Should the Retrofit Solution Be Designed?
The first layer is the on-site protection layer. The original system includes SPDs, lightning protection boxes, lightning protection cabinets, down conductors, grounding systems, and equipotential bonding. The retrofit is not about tearing everything down and rebuilding, but about adding monitoring capabilities on top of the original system.
The second layer is the status acquisition layer. Remote signaling acquisition, leakage current sensing, temperature sensing, lightning strike counting, lightning current sensing, grounding resistance monitoring, and enclosure environment monitoring are added or integrated, turning previously invisible statuses into data.
The third layer is the edge gateway layer. The gateway handles multi-device access, protocol conversion, local caching, interrupted-connection resume, remote configuration, local alarms, and data cleansing. In many existing projects with scattered points and complex communication conditions, gateway capability determines whether data can be uploaded reliably.
The fourth layer is the platform diagnostic layer. The platform should not just display whether devices are online, normal, or faulty; it should provide a device map, status dashboard, alarm grading, trend analysis, event archives, life assessment, and risk ranking.
The fifth layer is the O&M closure layer. After an alarm, there must be someone to confirm it, someone to review it, replacement records, recovery confirmations, and report archiving. Only with closure in place does an intelligent retrofit truly move from "seeing data" to "managing risk."

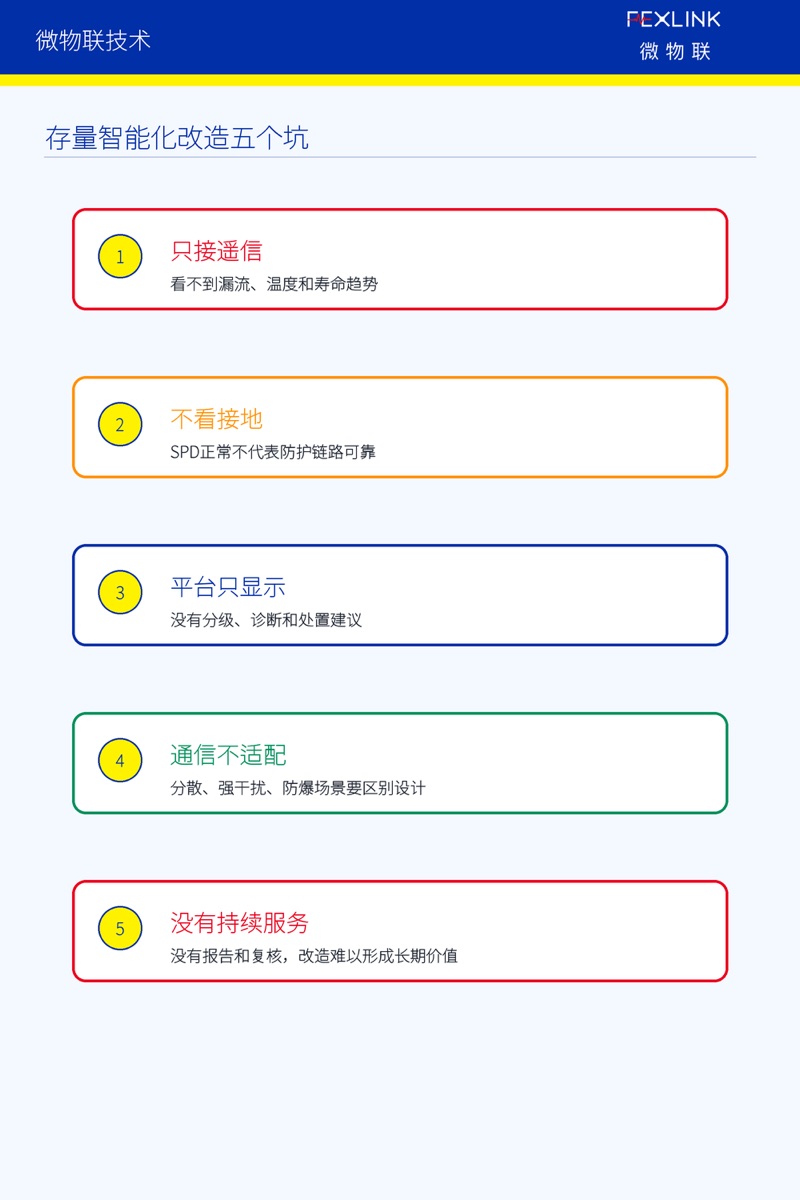

5. What Pitfalls Do Lightning Protection Companies Most Easily Fall Into in Existing-Installation Intelligent Retrofits?
The first misconception is only connecting remote signaling to the platform. Remote signaling is important, but if that is all that is acquired, the system remains shallow: degradation processes cannot be seen, and predictive maintenance is hard to achieve.
The second misconception is focusing only on SPDs and ignoring grounding. Smart lightning protection cannot look at the SPD alone; the protection chain should at least include lightning strike or surge events, SPD status, grounding status, equipment alarms, and O&M handling.
The third misconception is a platform that only displays but does not diagnose. If the platform merely shows devices as online, normal, or faulty, without trends, grading, cause explanations, and handling suggestions, customers will quickly find its value limited.
The fourth misconception is choosing communication methods that do not fit the site. Distribution rooms suit RS485 or Ethernet, scattered base stations suit 4G or 5G, parks can use gateway aggregation, petrochemical sites must consider explosion-proof and safety regulations, and wind and PV sites must consider distance, interference, and interrupted-connection resume.
The fifth misconception is having no follow-up service design. An intelligent retrofit is not finished when the construction ends. Without monthly reports, inspection suggestions, post-thunderstorm reviews, SPD life assessment, and grounding trend analysis, it is still hard to turn it into a long-term service.
6. How Does FEXLINK Understand the Intelligent Upgrade of Existing SPDs?
FEXLINK believes that the intelligent upgrade of existing SPDs is not simply adding communication to traditional lightning protectors, but enabling a once-silent lightning protection system to continuously produce status data.
What FEXLINK focuses on is not whether a single device is connected, but whether SPD status can be assessed, leakage current and temperature can be trended, grounding status can be continuously monitored, lightning current events can be traced, alarms can be graded, work orders can be closed-loop, and data can become the basis for customers' long-term safety management.
This can be summarized as three shifts: from invisible status to online status; from replacement after faults to degradation early warning; and from one-off projects to continuous data services.
Conclusion: Existing Lightning Protection Systems Are an Important Entry Point for Smart Lightning Protection Transformation

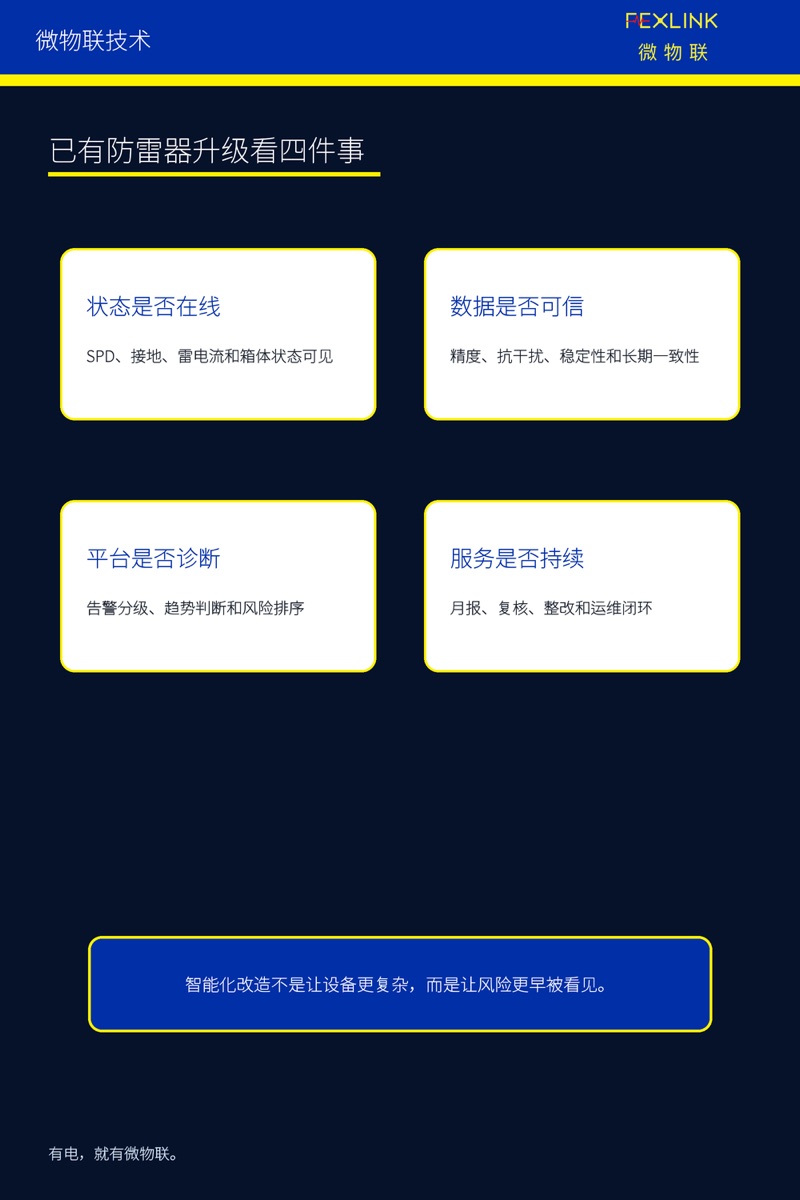

The intelligent upgrade of existing SPDs is not meant to make traditional equipment "look more advanced." It is meant to answer the key questions of long-term operation: whether the SPD is still effective, whether the grounding path is reliable, whether lightning strikes or surges have occurred, whether anomalies are detected in time, and whether handling forms a closed loop.
For lightning protection companies, the intelligent retrofit of existing lightning protection systems is a very realistic transformation entry point. It does not require every project to be torn down and rebuilt, yet it allows companies to move gradually from one-off equipment sales toward platform-based, data-driven, continuous services.
The true value of smart lightning protection is not more equipment, but transforming lightning protection systems from "installed" to "visible, assessable, manageable, and serviceable."
