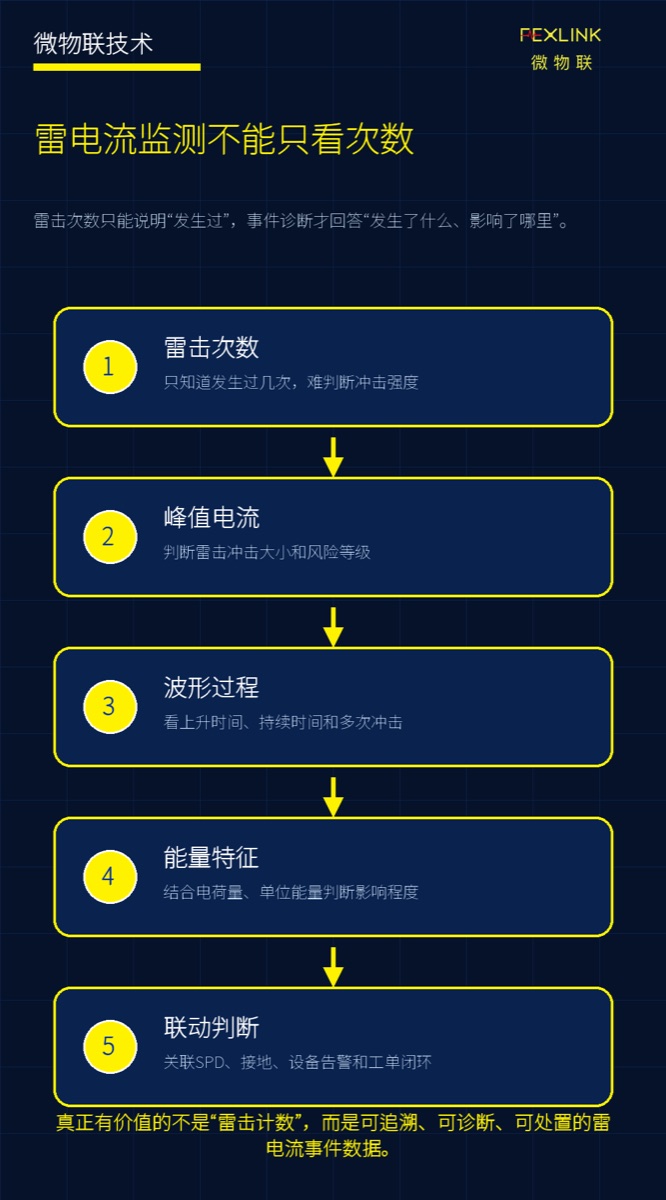

Many sites use lightning strike counters to know whether a lightning strike occurred in a certain area, on a certain device, or on a certain down-conductor path. That information certainly has value, but it answers only the most basic question: how many times. For a Smart Lightning Protection system, the count alone is far from enough.
After a lightning strike, what engineers really care about is: how strong was the strike, how fast was the impulse process, how long did it last, whether there were multiple impulses, whether SPDs were affected, whether grounding status changed, whether device alarms appeared at the same time, and whether the site needs review. In other words, the core of lightning current monitoring is not turning a strike into a number, but turning it into an event that can be analyzed, traced, and acted upon.

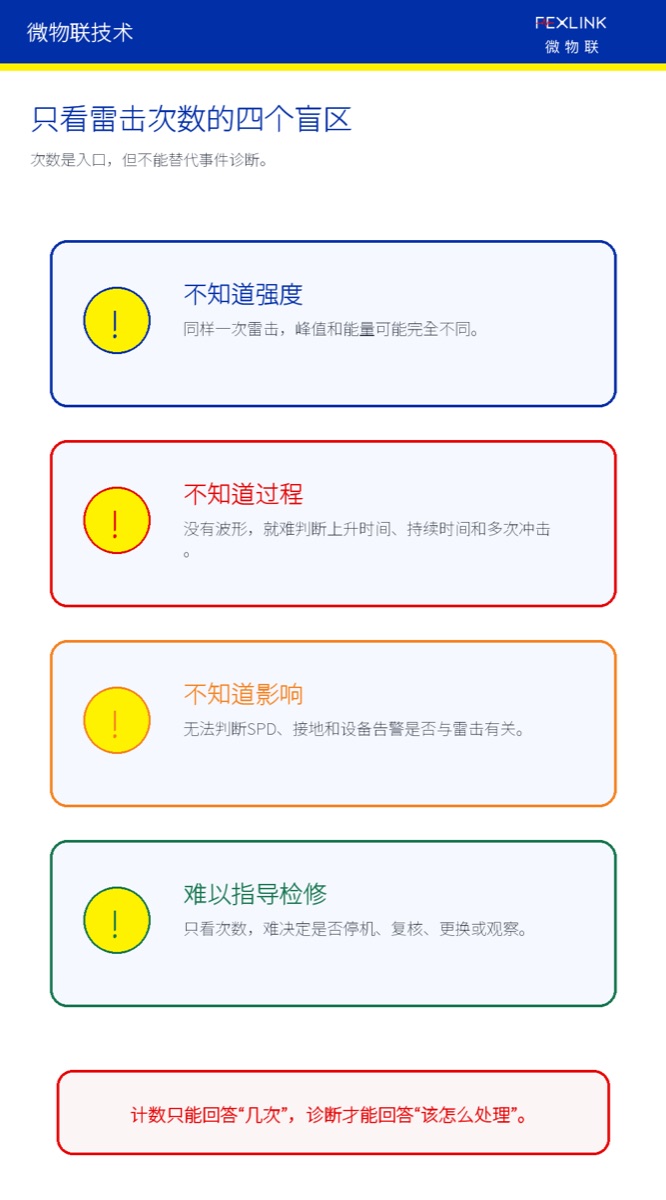

1. Why Is the Lightning Strike Count Alone Not Enough?
First, two strikes may have very different intensities. A minor impulse and a high-peak lightning current have completely different impacts on SPDs, the grounding system, and equipment. If only the count is considered, events of different risk levels will be treated as the same type of event.
Second, the count alone reveals nothing about the waveform process. Lightning current is not a static number but a rapidly changing impulse process. The shorter the rise time, the greater the transient stress on equipment; duration, the tail process, and multiple impulses also affect subsequent judgments.
Third, the count alone cannot determine the scope of impact. Whether a strike event caused SPD operation, triggered a sudden change in grounding status, or is related to alarms from communications, power supply, inverters, box-type transformers, equipment rooms, or control systems requires more event parameters and correlated data.
2. Which Dimensions Should Lightning Current Event Data Include?

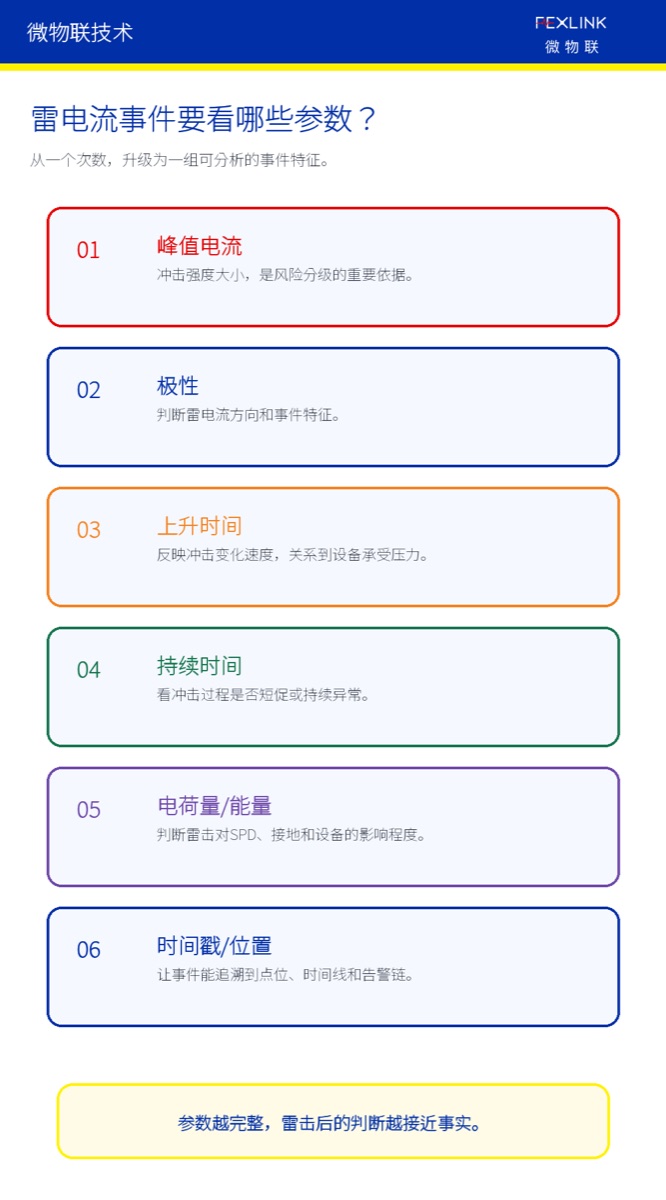

The first dimension of a lightning current event is the peak current. The peak reflects the impulse intensity and is an important basis for judging the event level, scope of impact, and review priority. The second is polarity, which helps understand the direction of the lightning current and the characteristics of the event.
Rise time and duration also matter. Rise time reflects how quickly the impulse changes, and duration reflects the energy release process. For precision equipment, communication systems, wind turbines, PV inverters, energy storage PCS, equipment-room power supplies, and transportation facilities, these process quantities offer far more diagnostic value than a bare count.
Charge and specific energy are also important. They help assess how much a strike affected SPD life, the grounding discharge path, and equipment insulation status. Finally, the timestamp and location determine whether an event can be traced. Without accurate time and location, it is difficult to place a lightning current event on the same timeline as SPD status, grounding changes, and device alarms.

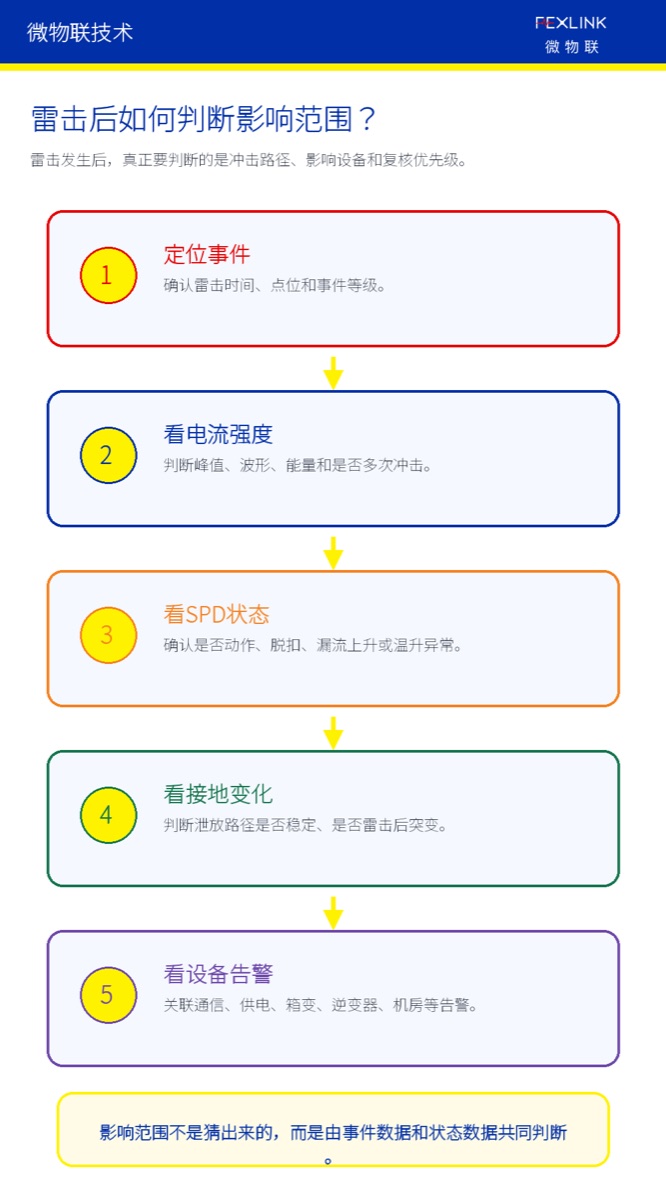

3. How to Assess the Scope of Impact After a Lightning Strike?
After a lightning strike, the first step is to confirm the event time, location, and event level. For wind farms, PV sites, petrochemical tank farms, communication base stations, highways, railways, and data centers, where the strike occurred matters more than how many strikes were counted.
The second step is to review the lightning current intensity and waveform. Events with high peaks, fast rise times, high energy, or multiple impulses within a short period should enter a higher-priority review queue. The third step is to check SPD status, including whether it operated or tripped, whether leakage current is rising, whether temperature is abnormal, and whether the life trend is declining.
The fourth step is to check grounding status. Grounding is the fundamental path for lightning current discharge; if grounding status changes abruptly after a strike or its long-term trend deteriorates, the site requires further review. The fifth step is to check device alarms, correlating the lightning current event with alarms from power supply, communications, inverters, box-type transformers, control systems, and equipment-room devices to form a complete judgment.
4. How Should a Lightning Current Monitoring System Be Designed?
The first layer is on-site acquisition, including sensors, Rogowski coils, lightning current monitoring units, and on-site mounting structures. The key to on-site acquisition is whether the transient impulse process can be captured reliably, not merely recording a count.
The second layer is the monitoring terminal, which should record peak, polarity, waveform, timestamp, event number, and location information. For complex scenarios, local storage, data integrity, immunity to interference, and long-term operating reliability must also be considered.
The third layer is the edge gateway and communication layer, including RS485, Modbus, 4G/5G, Ethernet, fiber optic, or private network access. The edge side should support multi-point aggregation, protocol conversion, data re-transmission, local alarms, and preliminary identification of abnormal events.
The fourth layer is platform diagnostics. The platform should not merely display counts; it should build event archives, risk levels, trend statistics, device correlation, review recommendations, and work-order closure. Only then can lightning current data evolve from a single record into a basis for O&M decisions.

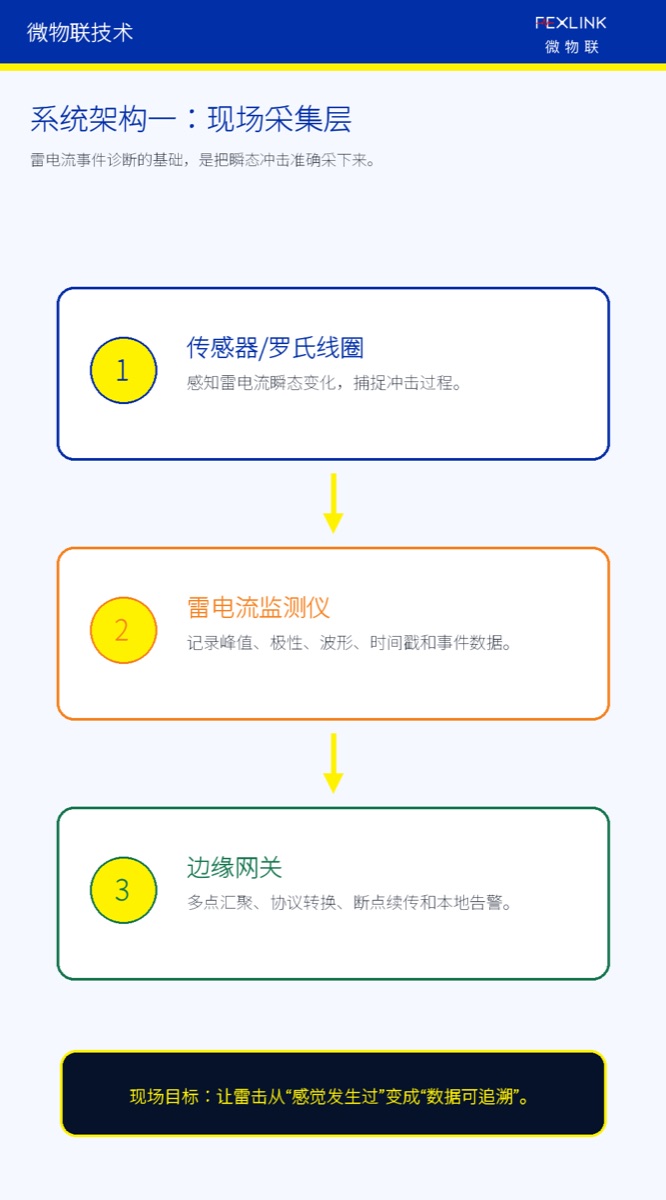

Fig. 5A: The on-site acquisition layer of the lightning current monitoring system.

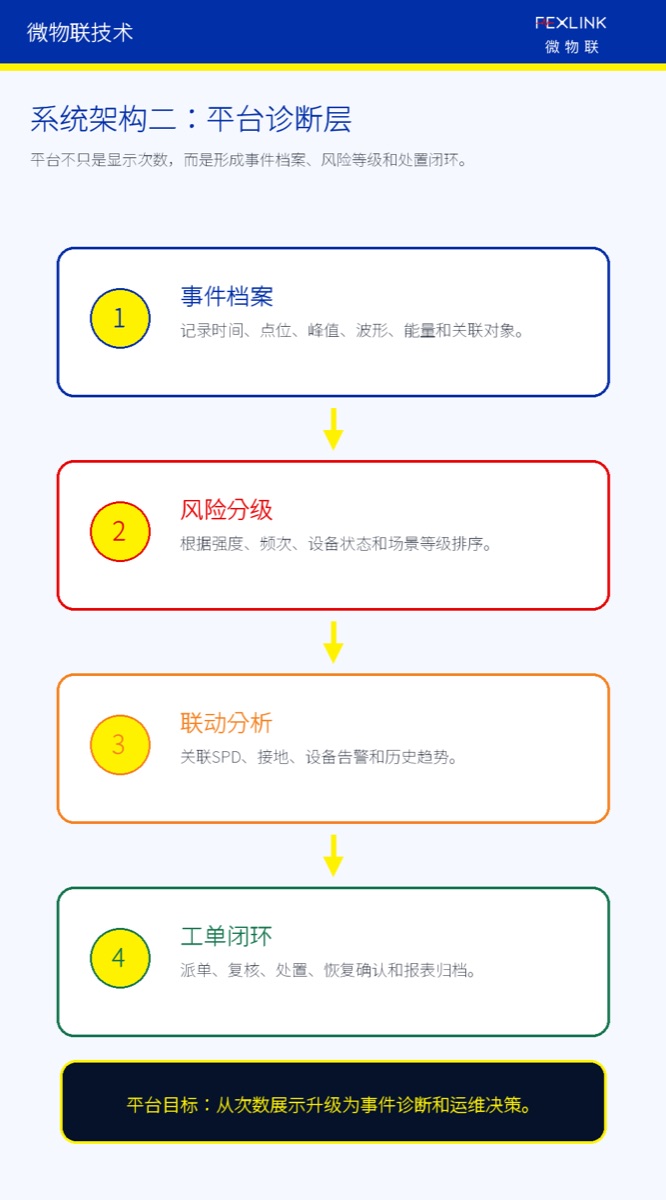

Fig. 5B: The platform diagnostics layer of the lightning current monitoring system.

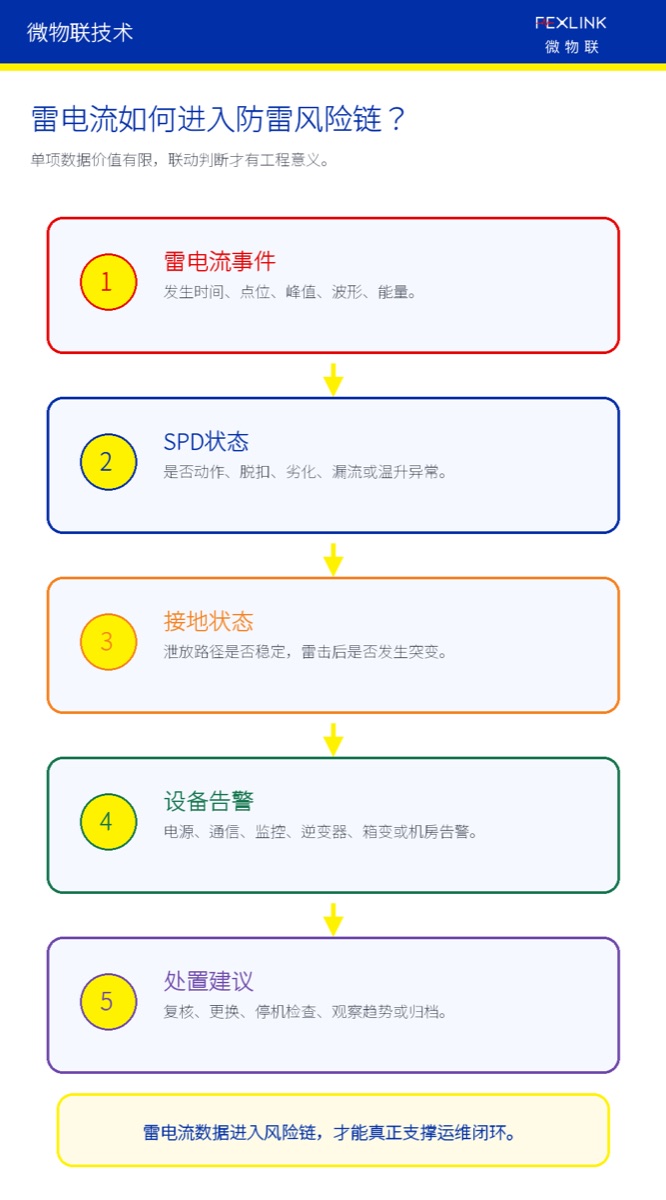

5. How Should Lightning Current Be Correlated with SPDs, Grounding, and Device Alarms?
A lightning current event is the starting point of a risk chain. After an event occurs, it is necessary to keep watching whether SPD status changes, whether grounding status changes, and whether devices raise alarms. Looking at lightning current alone only tells you that an impulse occurred; correlating lightning current with SPDs, grounding, and device alarms reveals whether the impulse actually caused harm.
For example, a high lightning current peak together with rising SPD leakage current may indicate that the protective device has absorbed a large impulse and its degradation trend needs attention. If grounding status changes abruptly after a lightning current event, the discharge path may need review. If a lightning current event, SPD disconnection, and device alarms appear on the same timeline, an on-site inspection with higher priority should be scheduled.

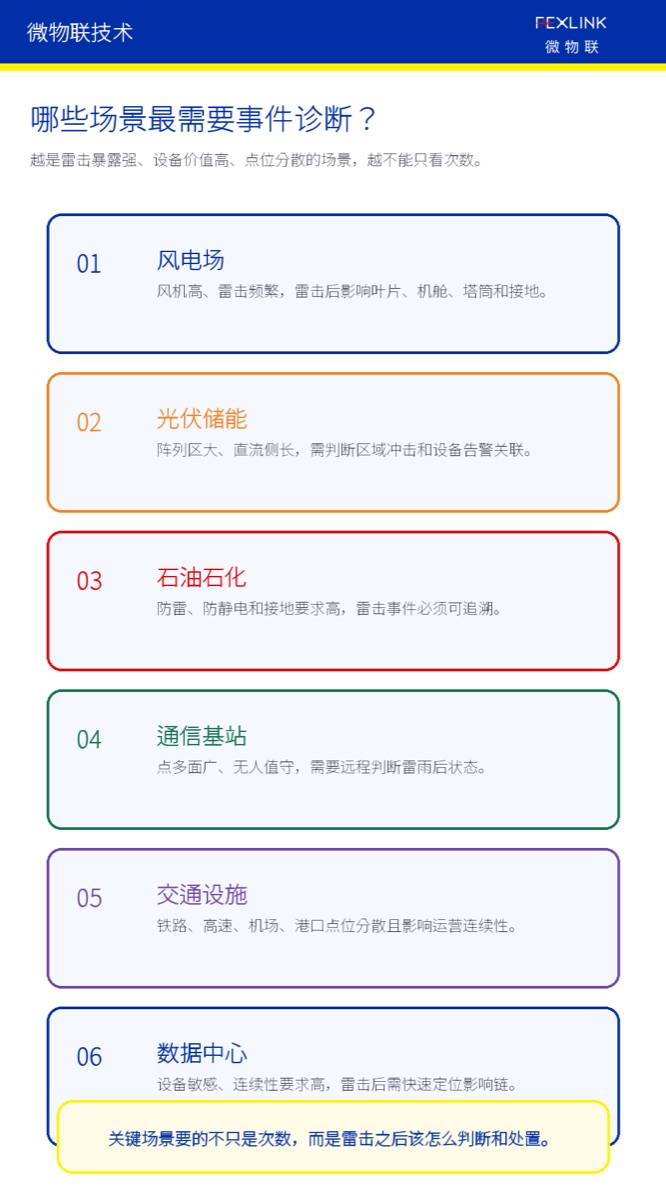

6. Which Scenarios Need Lightning Current Event Diagnosis the Most?
Wind farms are a typical scenario. Turbines are tall with highly exposed blades; a strike can affect not only the blades and down-conductor paths but also the nacelle, tower, box-type transformer, and grounding system. What is needed here is not just a count, but lightning current intensity, waveform, and subsequent maintenance judgments.
PV and energy storage sites have the same needs. Array areas are large, DC-side circuits are long, and inverters and storage equipment are high-value assets; if lightning strike and surge events cannot be located and traced, it is very difficult to judge the scope of impact afterwards. Petrochemical facilities, communication base stations, railways and highways, airports and ports, and data centers also need lightning current events integrated into their online monitoring platforms.
7. How Does FEXLINK Understand Lightning Current Event Diagnosis?
FEXLINK believes that lightning current monitoring is not about simply recording the strike count; it is about turning a strike event into a set of data that can be analyzed, traced, correlated, and used to guide O&M. Lightning current data should sit in the same risk chain as SPD status, grounding status, device alarms, and work-order handling.
What the FEXLINK system emphasizes is not single-point data display, but the transformation from electrical signals to data, from data to intelligence, and from intelligence to value. The value of lightning current event diagnosis lies precisely in converting an uncontrollable strike process into explainable risk evidence, helping engineers decide whether to review, where to review, whether to replace an SPD, whether to check grounding, and whether to correlate with equipment faults.
Conclusion: From Counting to Diagnosis - An Important Watershed for Smart Lightning Protection

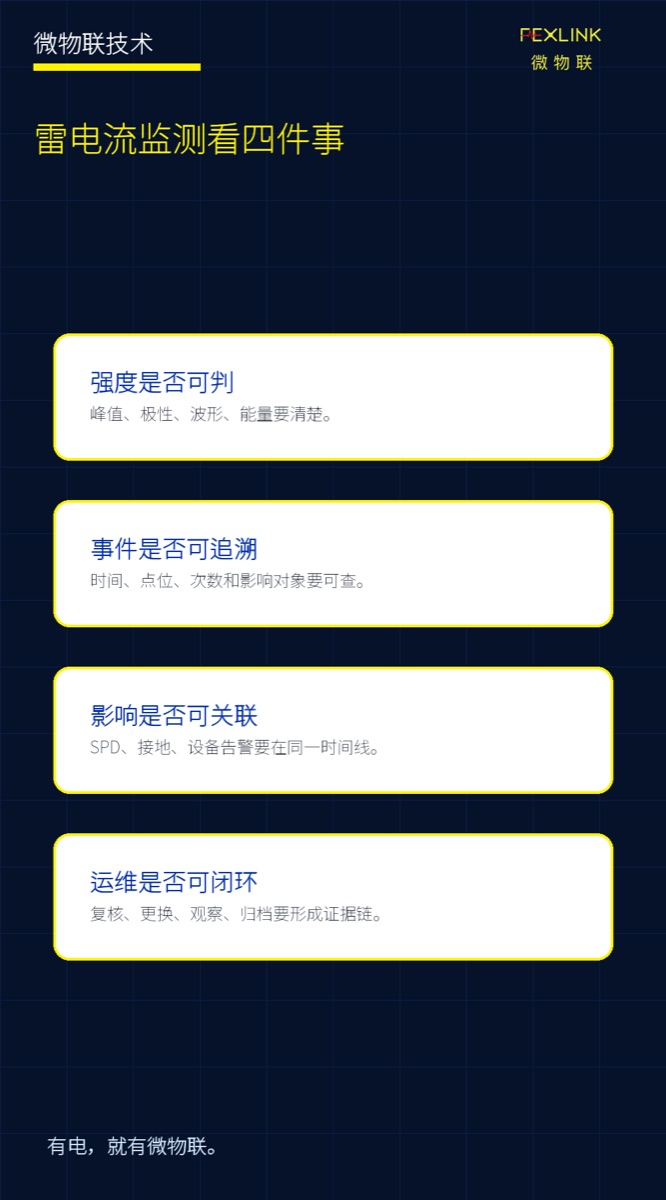

Lightning strike counting is the starting point of lightning current monitoring, but not the destination. Knowing only how many strikes occurred cannot support risk judgments and O&M decisions in complex scenarios. Truly valuable lightning current monitoring should unify peak, waveform, energy, time, location, SPD status, grounding changes, and device alarms.
The move from lightning strike counting to lightning current event diagnosis upgrades a lightning protection system from recording what happened to judging what was affected and how it should be handled. This is exactly the key step by which Digital Lightning Protection moves from device configuration to data-driven O&M.
