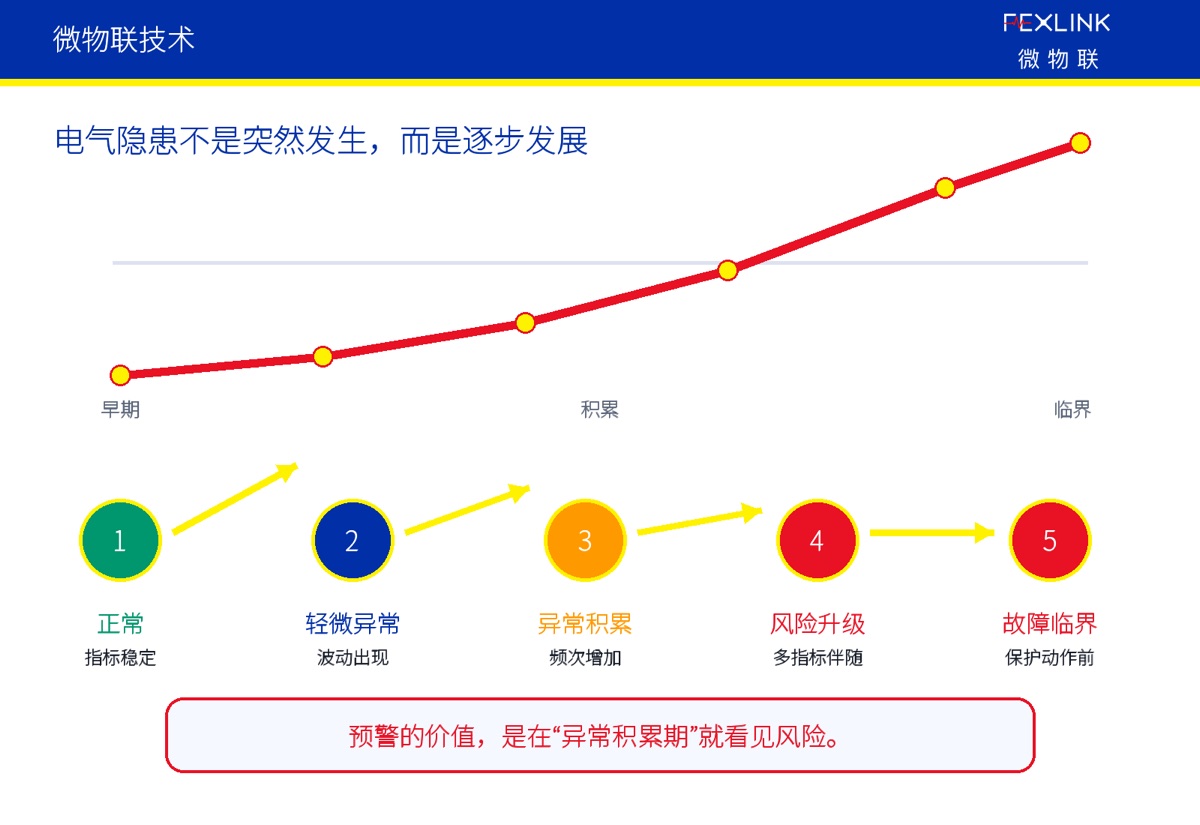

1. Electrical faults rarely occur suddenly
Many electrical accidents appear to happen all of a sudden: equipment burns out, circuits trip, smoke rises from cabinets, sockets overheat - even fires break out. But from an engineering perspective, most risks do not emerge without warning; they accumulate gradually during long-term operation.
For example, contact points go from slightly loose to overheating, insulation from slightly damp to increased leakage current, loads from occasional inrush to frequent fluctuations, and arcs from intermittent pulses to persistently dangerous states. Traditional O&M often sees only the final outcome, not the intermediate process.
This is exactly the invisibility problem that early warning is meant to solve.
2. Conventional protective devices mostly handle the final moment
Protective devices such as circuit breakers, residual current devices (RCDs), and fuses are very important: their role is to cut off the risk when a fault occurs and to protect equipment and personnel.
But a protective trip usually means the risk has already reached a certain threshold. When an RCD trips, the leakage current has already met the tripping condition; when a circuit breaker trips, the current abnormality is already obvious; when a fuse blows, fault energy has already accumulated to a certain level.

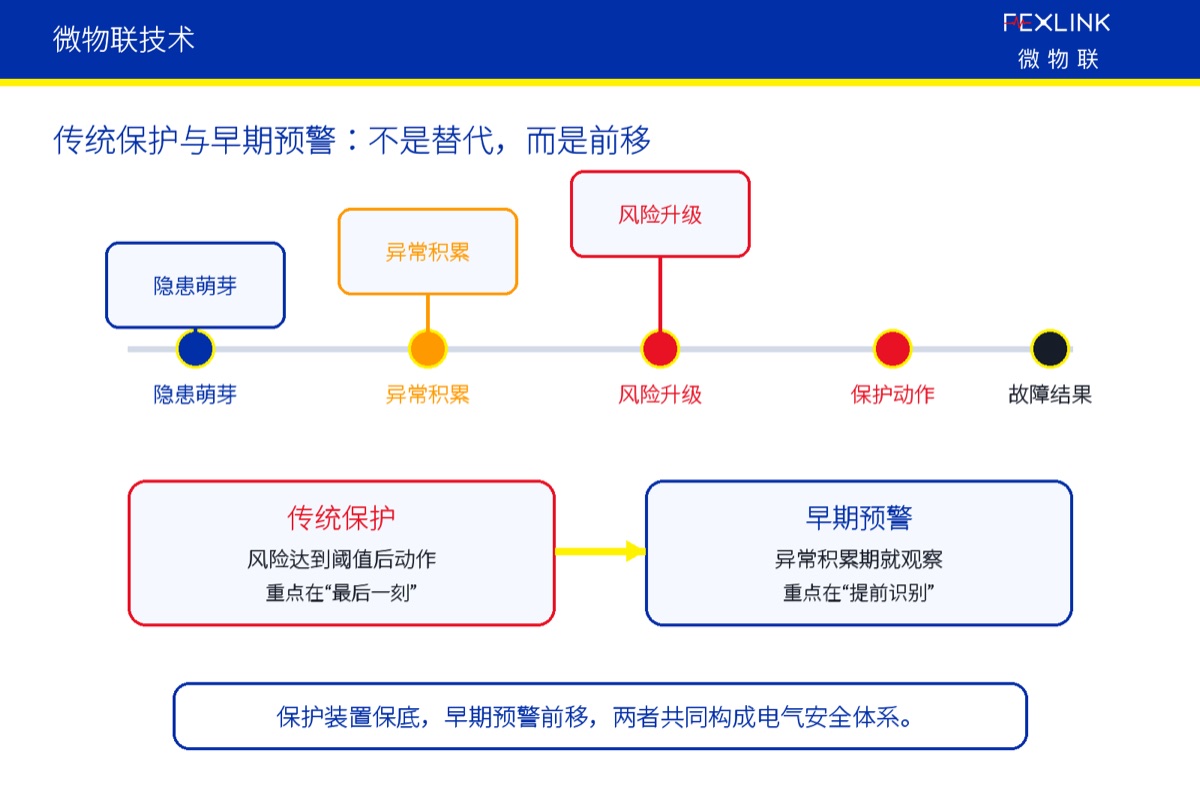

So conventional protection is not without value - it is simply better at handling the final moment. What early warning adds is state recognition before the protective device operates.

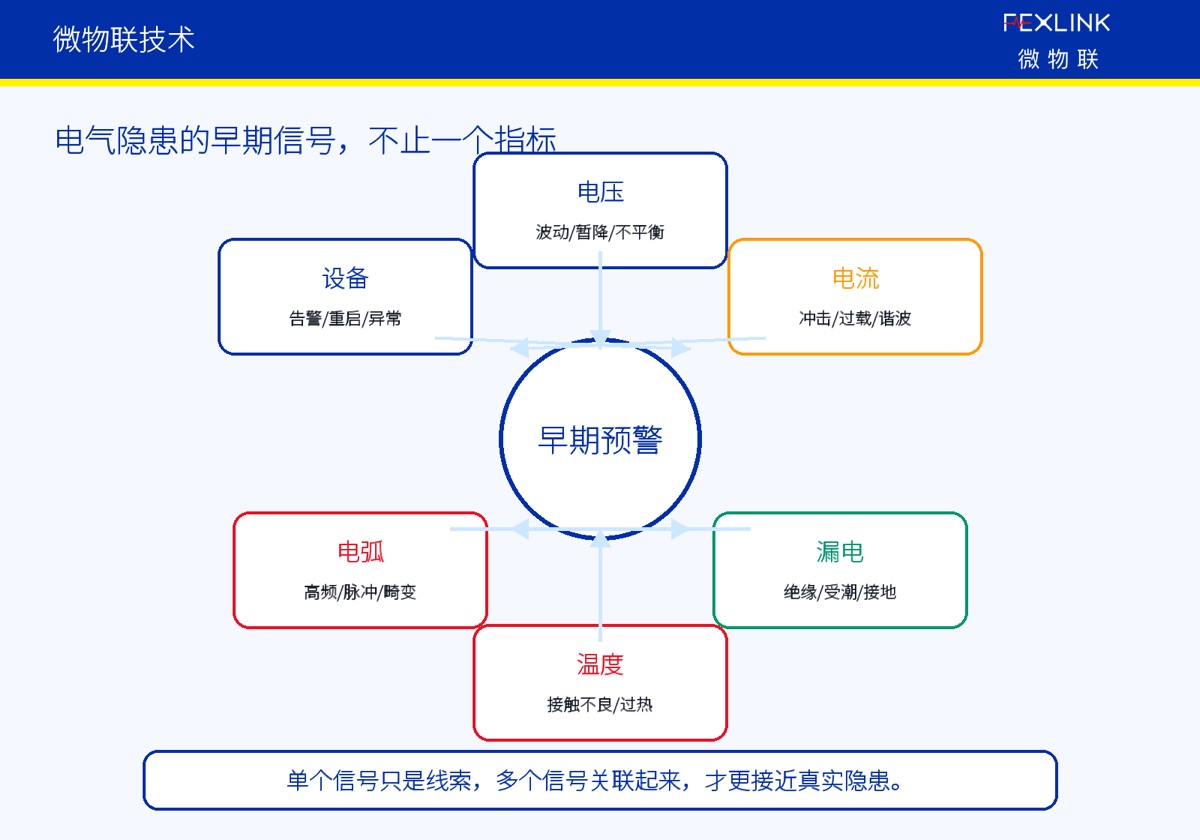

3. Early signals do not come from a single indicator alone
Early signals of electrical hazards can come from many directions. Voltage abnormalities may appear as overvoltage, undervoltage, sag, or three-phase imbalance; current abnormalities may appear as overload, inrush, imbalance, or harmonic changes; leakage current trends may reflect insulation degradation, dampness, or grounding anomalies.
Temperature rise may come from poor contact, loose terminals, oxidation and corrosion, or abnormal loads; arc faults may appear as waveform distortion, high-frequency components, intermittent pulses, and half-cycle anomalies. Looked at in isolation, any one indicator may be just an ordinary disturbance; when several indicators change at the same time, it is much closer to a real hidden hazard.

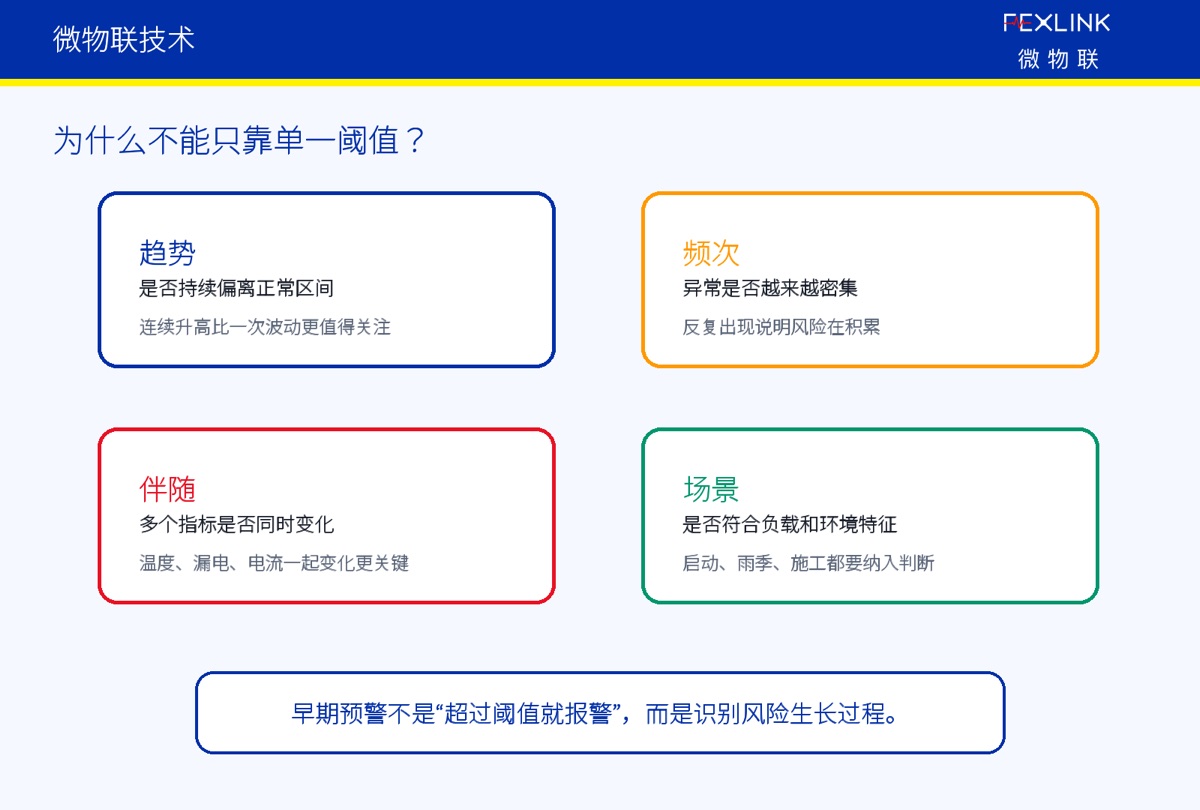

4. Early warning cannot rely on a single threshold alone
Many false alarms and missed detections come from over-reliance on a single threshold. A brief voltage fluctuation is not necessarily dangerous, and a short current inrush may simply be a normal start-up; temperature rise must be assessed together with load and environment, and leakage current changes must be examined in terms of duration and trends.
Genuinely valuable early warning requires looking at trends, frequency, duration, and accompanying relationships. For example, if temperature rises slowly while current does not increase noticeably, poor contact should be suspected; if leakage current keeps rising through the rainy season, environmental and insulation conditions should be considered; if high-frequency anomalies appear in the current waveform and their frequency increases, arc risk deserves attention.

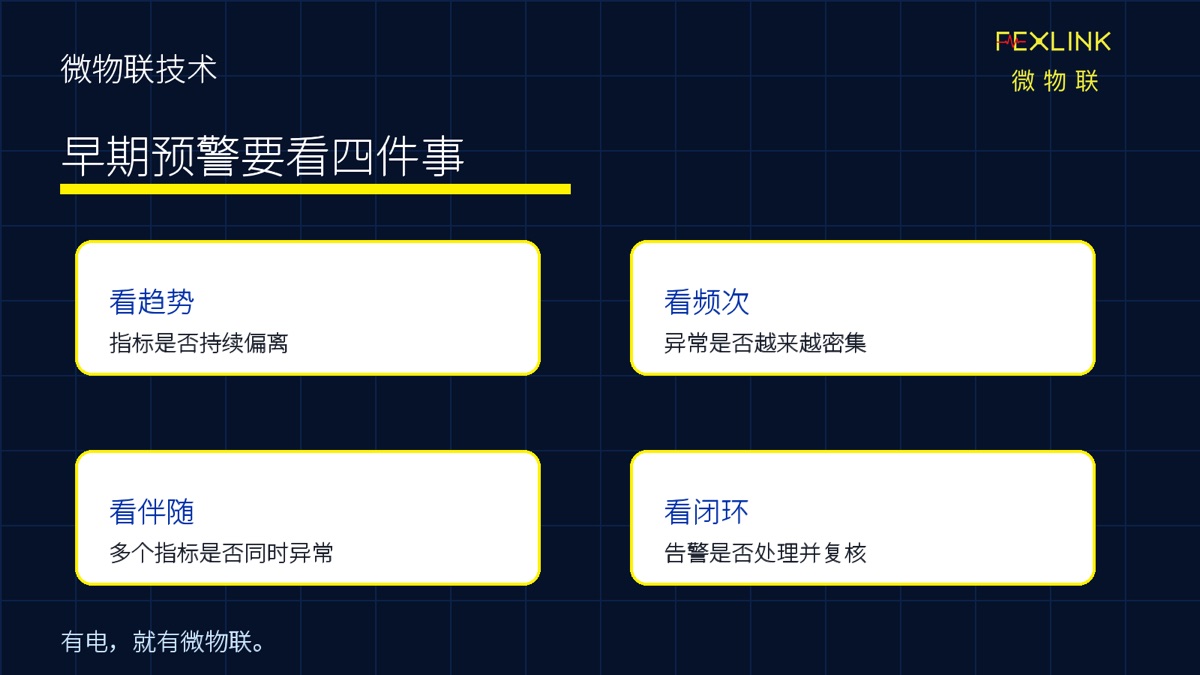

5. From passive response to proactive warning
The goal of early warning in electrical safety is not to generate more alarms, but to make alarms earlier, more accurate, and more explainable. The system should be able to state where the risk comes from, why it needs attention, and whether the next step is to observe, re-verify, or dispatch a work order.
For FEXLINK, early warning means moving from single-point alarms to multidimensional diagnosis, from passive protection to proactive warning, and from accident handling to risk management. It does not replace protective devices; instead, it buys O&M personnel more time to judge and respond before protective devices operate.
Conclusion: Early detection makes early handling possible
If you wait until a fault occurs, much of the loss has already been done; if trends and accompanying signals can be identified at an early stage of a hidden hazard, O&M has the chance to act in advance.
The essence of early warning for electrical safety is to turn invisible risk processes into data that can be recorded, assessed, and brought to closure.
