Many equipment room projects configure SPDs, a grounding system and equipotential bonding during the construction phase. At acceptance, all the devices appear to be installed and the drawings basically meet the requirements. But the real problems only begin after the room enters service: has the SPD been subjected to a surge impact? Has it degraded? Has the grounding status changed? Is an equipment anomaly related to a particular surge? A traditional lightning protection system can rarely answer these questions on an ongoing basis.
The biggest difference between an equipment room and an ordinary building is its high device density, strong system coupling and demanding business continuity requirements. A seemingly minor power disturbance can restart a switch; a surge on a signal line can affect video surveillance, access control or control systems; an unstable grounding status can also reduce the discharge capability of protective devices. Therefore, equipment room lightning protection needs to upgrade from "what was installed" to "whether it still works during operation".
1. Why is equipment room lightning protection so easily underestimated?

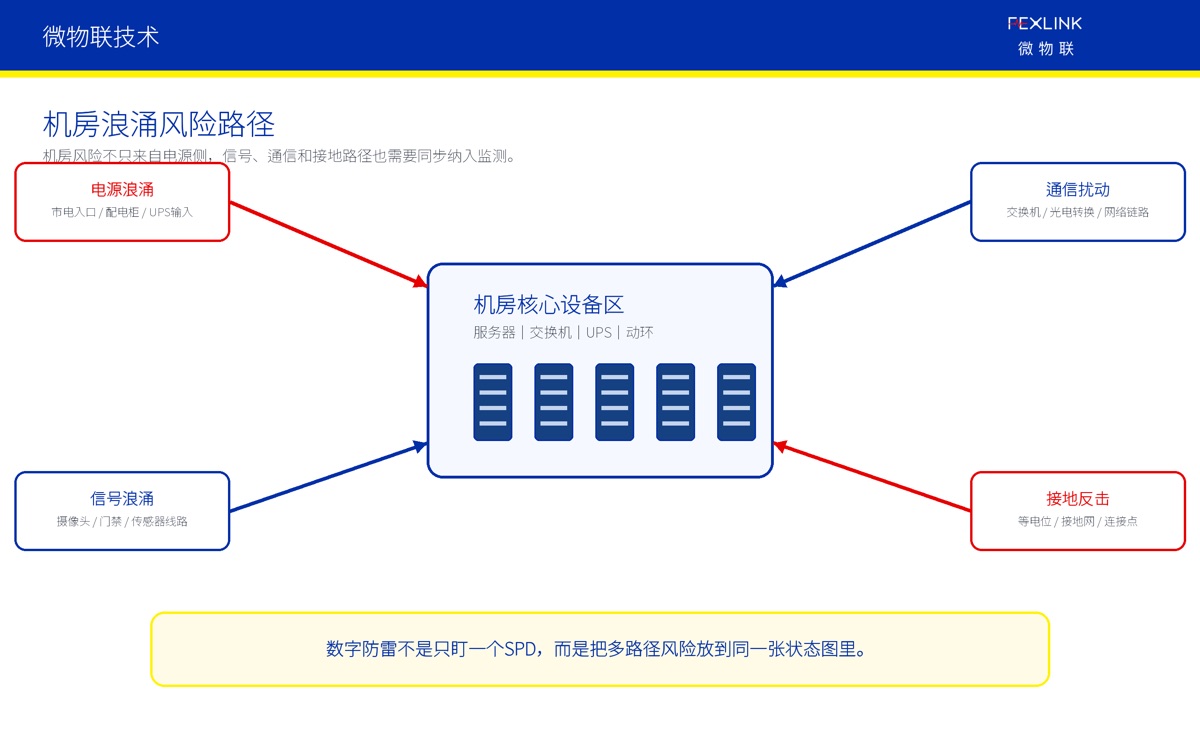

Equipment in a room generally depends on a stable power supply and reliable communication. Servers, switches, UPS units, precision air conditioning, security systems, access control, video surveillance and environment and power monitoring systems often share the same power, grounding and communication links. Once a surge enters through the power side, the signal side or the grounding system, what is affected may not be a single device but the entire infrastructure.
Many sites only pay attention to power SPDs while ignoring signal SPDs, communication link protection and grounding status. Some projects emphasize lightning protection testing during construction but lack status data during operation. As a result, the lightning protection system seems to "exist" in normal times, yet when a real fault occurs, no one can say clearly whether it actually played its role.
2. Main blind spots of traditional equipment room lightning protection

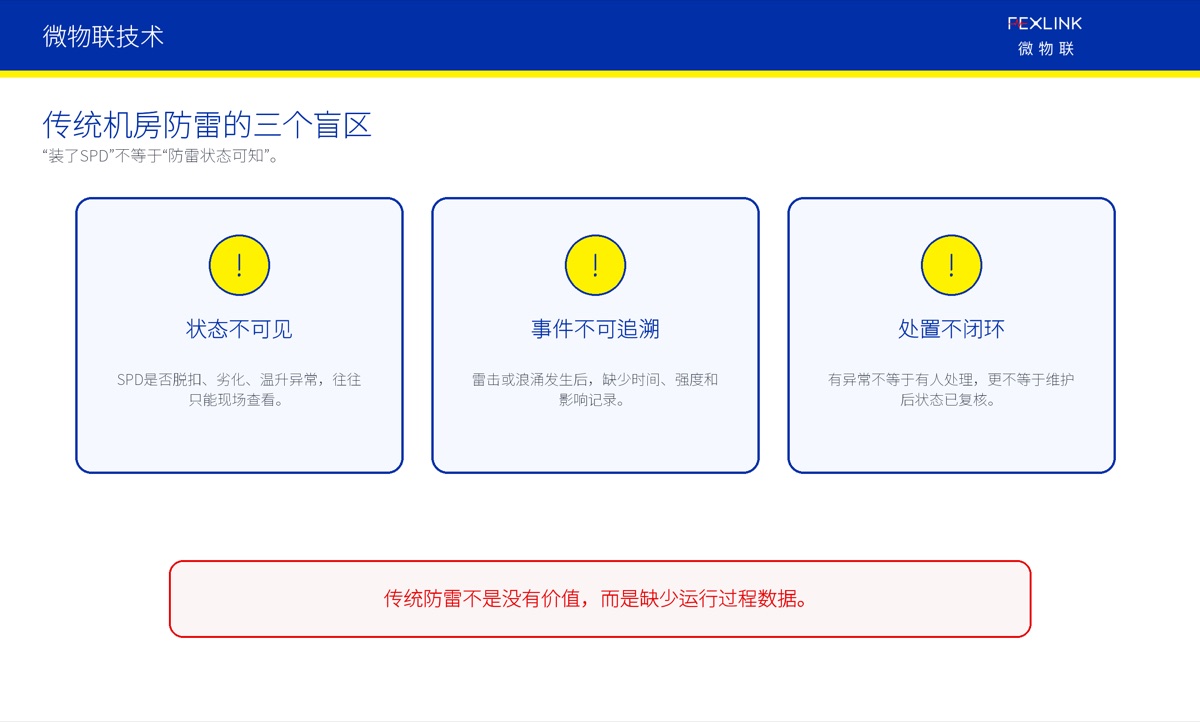

Traditional equipment room lightning protection is not without value. Graded SPDs, equipotential bonding, grounding systems and standard-compliant installation remain the foundation of safe equipment room operation. Its biggest shortcoming, however, is that the operating process is invisible. After an SPD disconnects, without remote monitoring it can only be discovered during manual inspection; an SPD that has not disconnected does not mean it has not degraded; after a lightning strike or surge, without event records it is difficult to determine afterwards whether an equipment anomaly is related to the surge.
The bigger problem is that handling is not closed-loop. Even when many equipment rooms have local alarms, it is hard to confirm whether the alarm was pushed, whether a work order was dispatched and whether on-site verification was carried out. The management value of a lightning protection system should not stop at an indicator light; it should enter the O&M workflow.
3. What should digital lightning protection in an equipment room monitor?

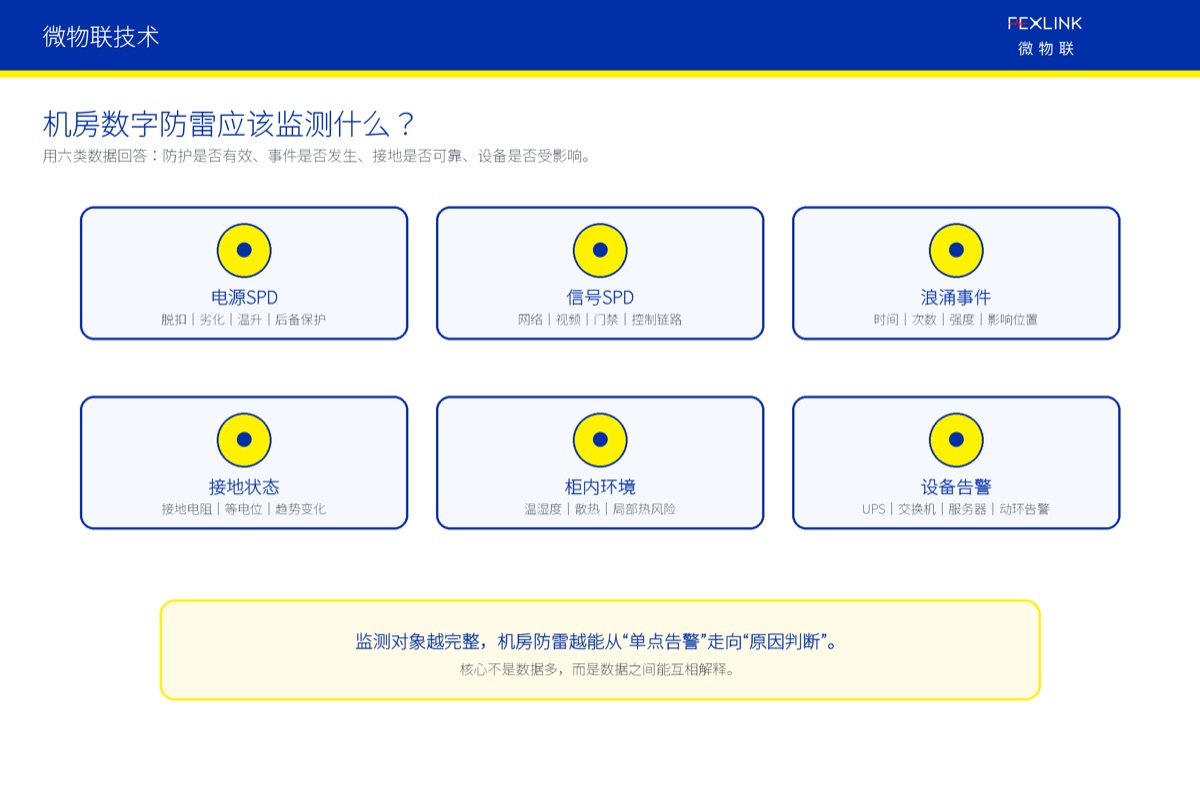

Digital lightning protection in an equipment room should first monitor the status of protective devices, including power SPDs, signal SPDs, backup protection, disconnection status, temperature rise and degradation trends. Second, it should record surge events, at least capturing the time of occurrence, the affected circuit and the event level. Third, it should pay attention to grounding system status, including grounding resistance, equipotential bonding and long-term trends.
At the same time, equipment room lightning protection data must not exist in isolation. In-cabinet temperature and humidity, UPS alarms, switch anomalies, distribution cabinet alarms and environment and power monitoring data can all help explain the impact of lightning protection events. A truly valuable system does not display each indicator separately; it places these data on the same timeline and determines whether the risk is expanding.
4. How should a smart lightning protection system for an equipment room be designed?

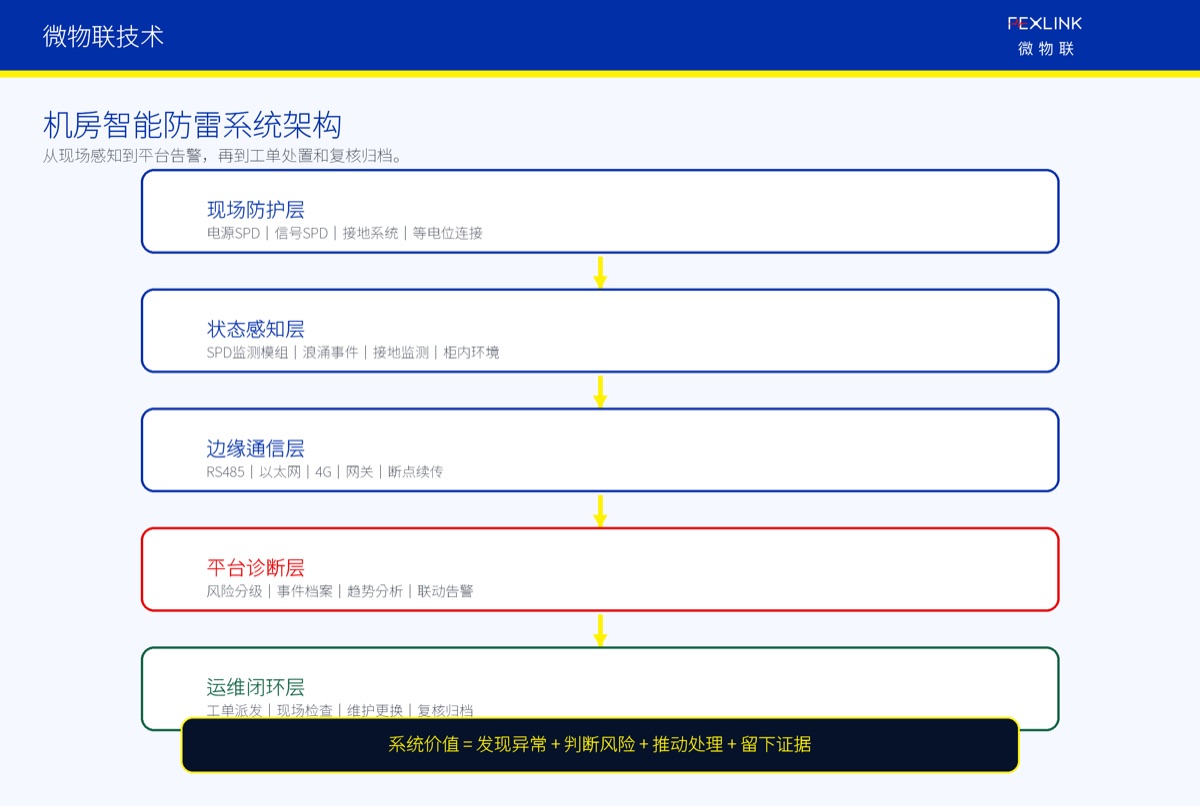

A complete smart lightning protection system for an equipment room should include at least an on-site protection layer, a status sensing layer, an edge communication layer, a platform diagnosis layer and an O&M closure layer. The on-site protection layer addresses basic protection; the status sensing layer collects SPD, surge, grounding and environment status; the communication layer is responsible for stable upload; the platform layer handles alarm grading, trend analysis and event archives; and the O&M layer handles work order dispatch, handling, verification and archiving.
Such a design brings equipment room lightning protection into the actual management process. For example, if the system detects abnormal degradation of a power SPD while the grounding status fluctuates, the platform should not merely show "alarm"; it should raise the risk level and remind O&M staff to check the corresponding distribution cabinet, SPD module, grounding connections and historical surge events.
5. How does FEXLINK understand smart lightning protection for equipment rooms?

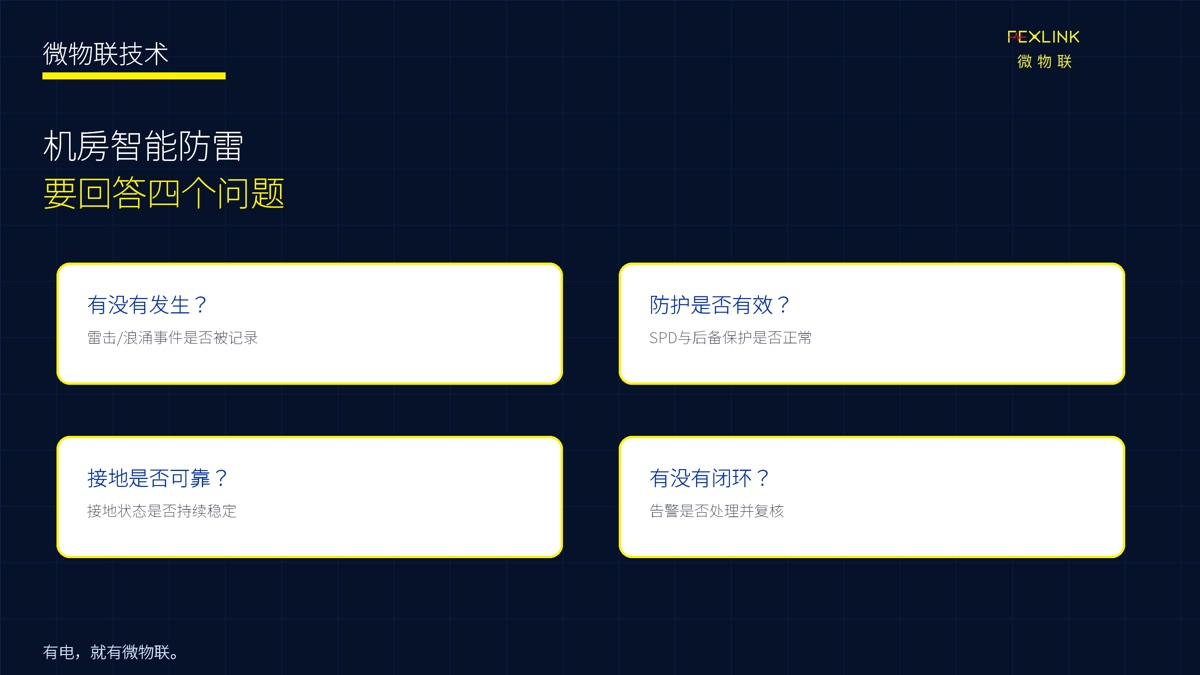

FEXLINK believes that the core of smart lightning protection for equipment rooms is not simply networking traditional SPDs, but turning equipment room lightning protection from a static device into a continuously operating data system. What an equipment room truly needs is visible status, searchable events, assessable risk and closed-loop handling.
The FEXLINK digital lightning protection system aims to correlate power protection, signal protection, grounding status, surge events and equipment alarms, so that equipment room O&M no longer relies only on periodic inspections and post-fault investigation. For an equipment room, digital lightning protection is not a decorative platform but part of infrastructure reliability management.

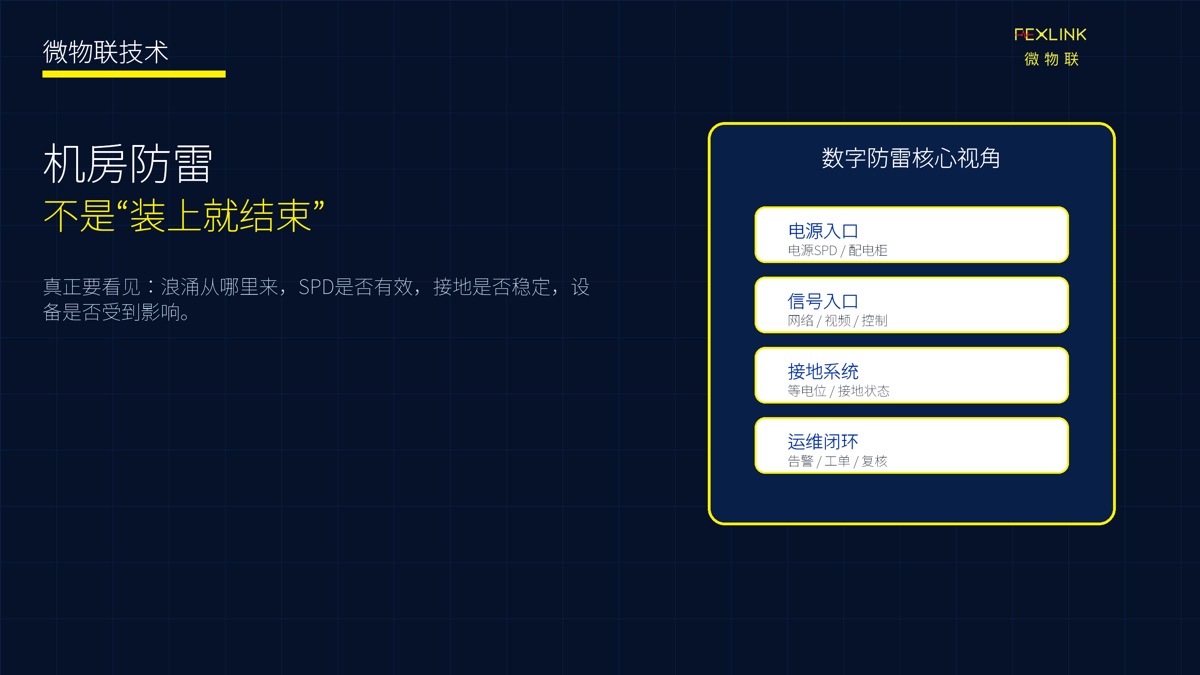

Conclusion: Equipment room lightning protection should move from "qualified installation" to "known status"
Equipment room lightning protection cannot stop at the configuration list of the construction phase, nor can it rely only on the results of one test per year. During long-term operation, surge events, protective device status, grounding status and equipment alarms all change. If these changes cannot be seen, risk cannot truly be managed.
The value of digital lightning protection is to make the equipment room lightning protection system continuously produce data that supports judgment and handling, so that anomalies are detected in time, events can be traced and O&M forms a closed loop.
