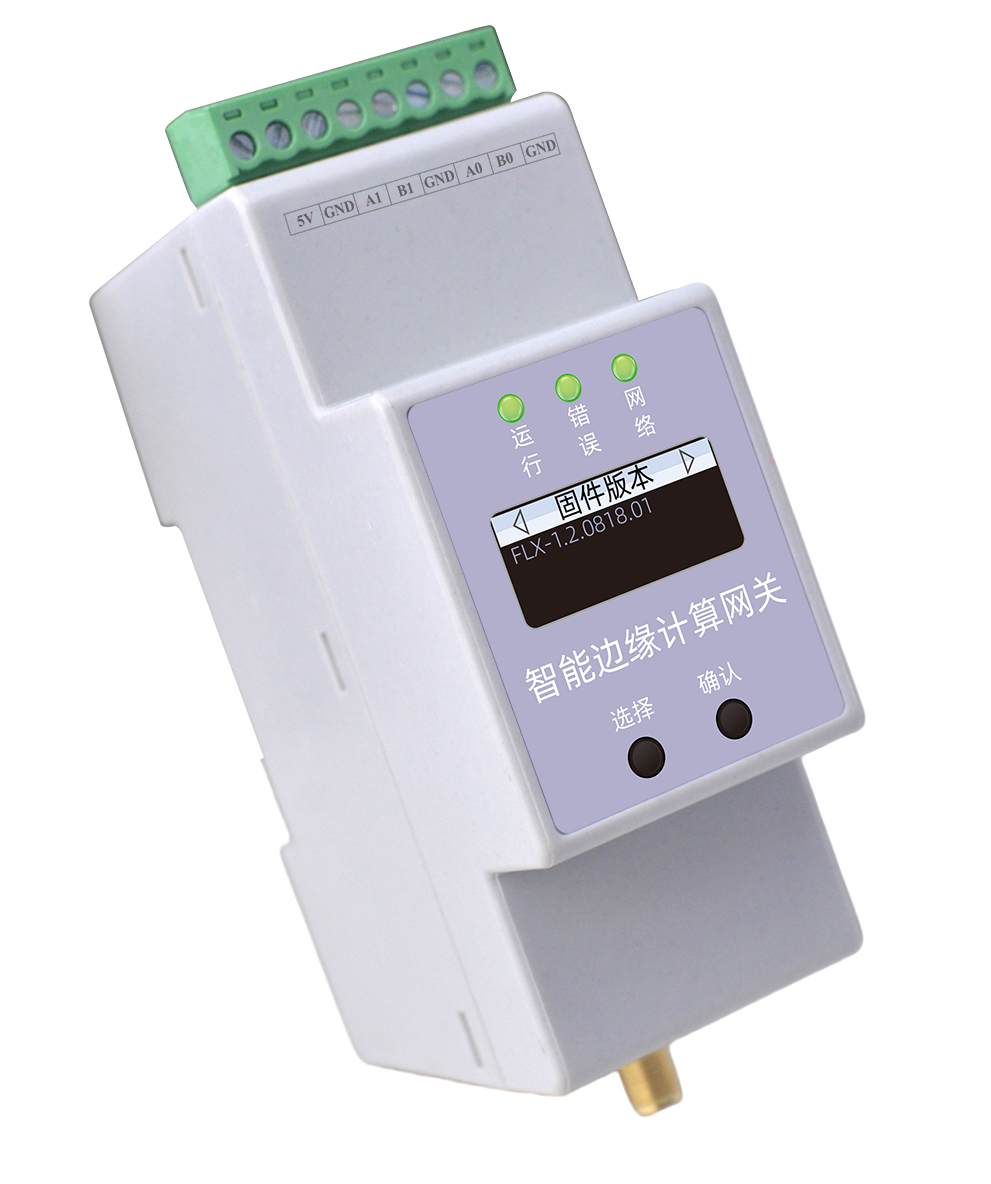

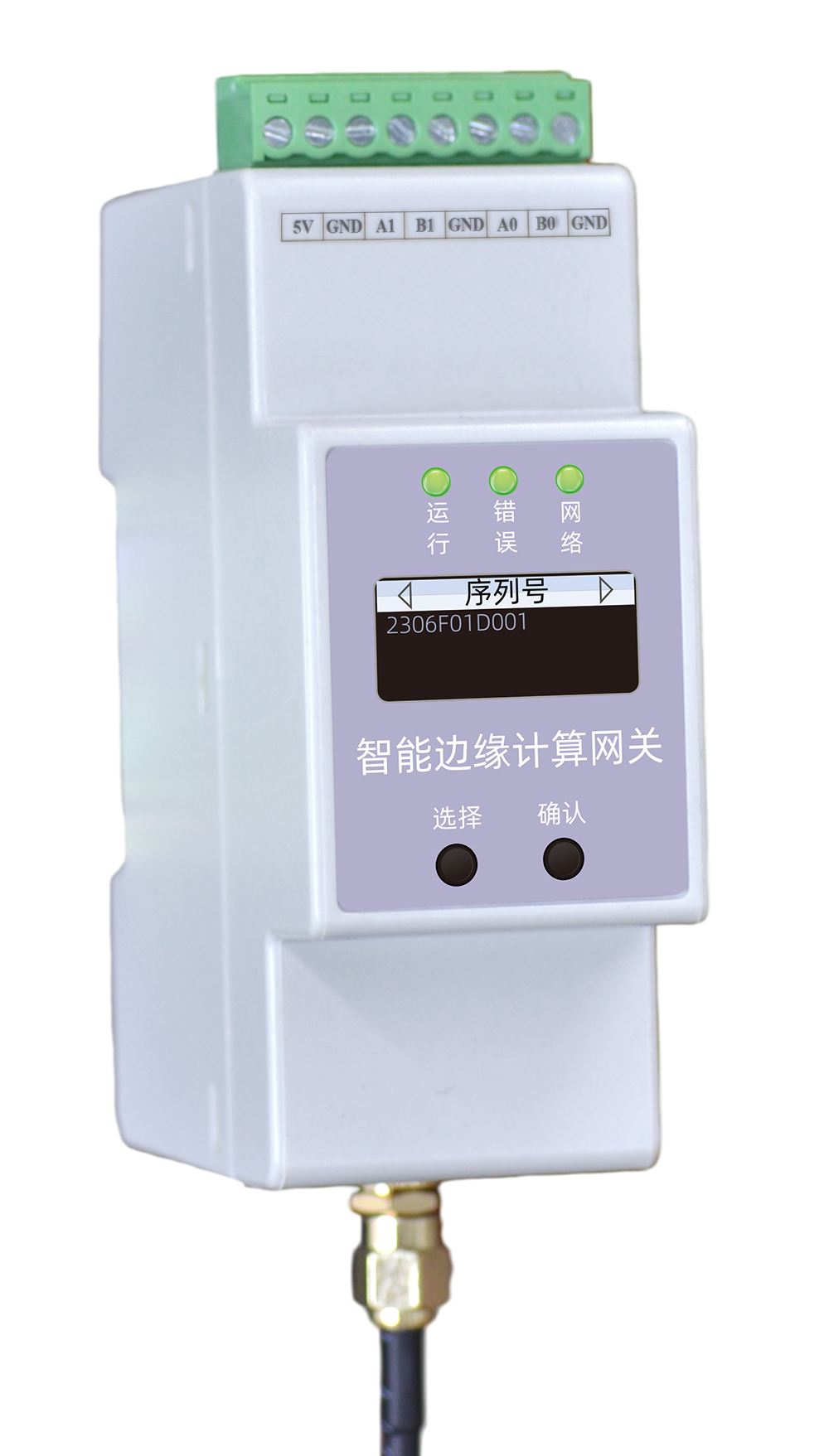

ESX Smart Edge Computing Gateway
ESX Series
Built-in edge-computing engine, 30 devices/2000-point data access, 4G/Wi-Fi/Ethernet cloud, offline data continuation.

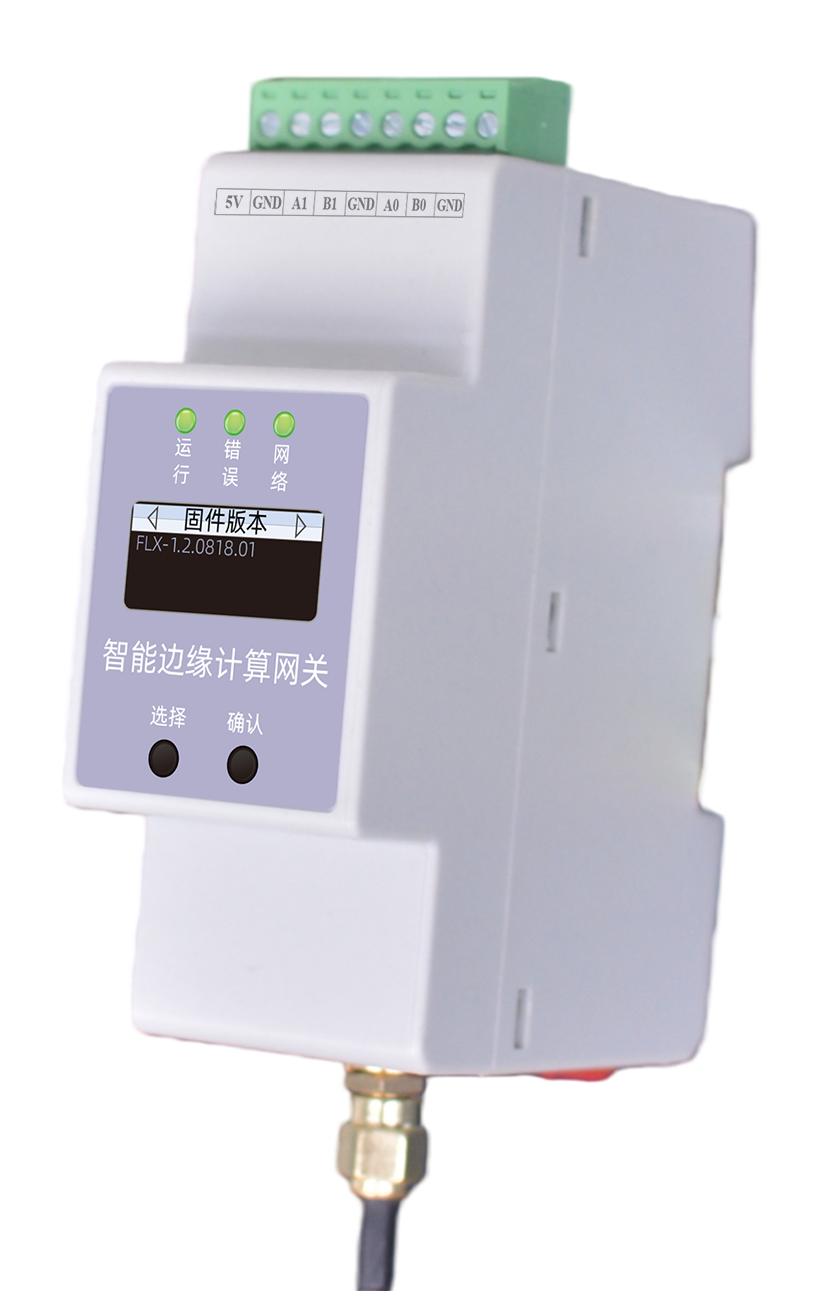

Product Overview
The ESX smart edge computing gateway comes with a built-in edge computing development engine that allows secondary development and processing of data. The open data acquisition development engine supports user-defined data acquisition protocols. A built-in anti-tamper function assists users with remote payment reminders. Integrating data acquisition, edge computing, protocol conversion and network transmission, it is the core hub connecting field devices to the cloud platform.
Core capabilities
Built-in edge computing development engine supporting secondary development and processing of data. Open data acquisition development engine supporting user-defined data acquisition protocols. Integrating data acquisition, edge computing, protocol conversion and network transmission. Built-in anti-tamper function for remote payment reminders, connecting the field and the cloud. Product Features
Data Generated
Product Features
Accurate data
Built-in communication protocols for mainstream PLCs, HMIs and other devices, so you can go online with simple settings.
Built-in protocols
Built-in anomaly detection algorithm enables millisecond-level alarm processing of data.
Alarm prediction
Built-in anomaly detection algorithm enables millisecond-level alarm processing of data.
Easy connectivity
Supports 4G, WiFi and Ethernet connections to the platform with just simple configuration.
Offline buffering and retransmission
An SD card can be inserted for local storage, and data is automatically retransmitted when the network recovers.
Traffic saving
Data supports change-triggered + periodic upload, greatly saving data traffic.
Routing function
Can be used as a 4G router to provide network access for field devices.
Data security
Built-in asymmetric encryption algorithm encrypts data during transmission.
Switching function
Can be used as a switch, allowing touchscreens and PLCs to form a LAN through the module. Selection Guide
System Topology
Selection Guide
Model naming convention
ESX - 02 2 3 G R ESX Product: Smart gateway 02 Gateway type: 02=protocol conversion 2 Mounting method: 2=indoor 3 Power supply: 3=DC5V G Uplink communication: E=Ethernet / G=4G R Downlink communication: R=RS485 Model Power supply Display Max connected devices Data points Downlink RS485 Uplink wired Ethernet Uplink wireless 4G ESX-0223-GR 5V OLED 30 2000 2 -- 1 ESX-0223-ER 5V OLED 30 2000 2 1 -- Technical Parameters
| Model | Power supply / Display / Max connected devices / Data points / Downlink RS485 / Uplink wired Ethernet / Uplink wireless 4G |
| ESX-0223-GR | 5V / OLED / 30 / 2000 / 2 / -- / 1 |
| ESX-0223-ER | 5V / OLED / 30 / 2000 / 2 / 1 / -- |
Technical Parameters
Basic parameters
Operating voltage DC 4.75~5.25V (5V) Power consumption ≤12W Operating temperature -20℃~60℃ Operating humidity <95% Weight 150g Dimensions 36*110*69mm (L×W×H) Housing material Thermoplastic material UL94V0 Protection rating IP20 Mounting method Standard 35mm DIN rail mounting Display OLED
| Operating voltage | DC 4.75~5.25V (5V) |
| Power consumption | ≤12W |
| Operating temperature | -20℃~60℃ |
| Operating humidity | <95% |
| Weight | 150g |
| Dimensions | 36*110*69mm (L×W×H) |
| Housing material | Thermoplastic material UL94V0 |
| Protection rating | IP20 |
| Mounting method | Standard 35mm DIN rail mounting |
| Display | OLED |
Monitoring functions
Downlink communication RS485 Uplink communication Wired/RS485 Max connected devices 30 Data points 2000 Downlink RS485 2 channels Uplink wired Ethernet 1 channel (ESX-0223-ER) Uplink wireless 4G 1 channel (ESX-0223-GR) Installation Instructions
| Downlink communication | RS485 |
| Uplink communication | Wired/RS485 |
| Max connected devices | 30 |
| Data points | 2000 |
| Downlink RS485 | 2 channels |
| Uplink wired Ethernet | 1 channel (ESX-0223-ER) |
| Uplink wireless 4G | 1 channel (ESX-0223-GR) |
Installation Instructions
a

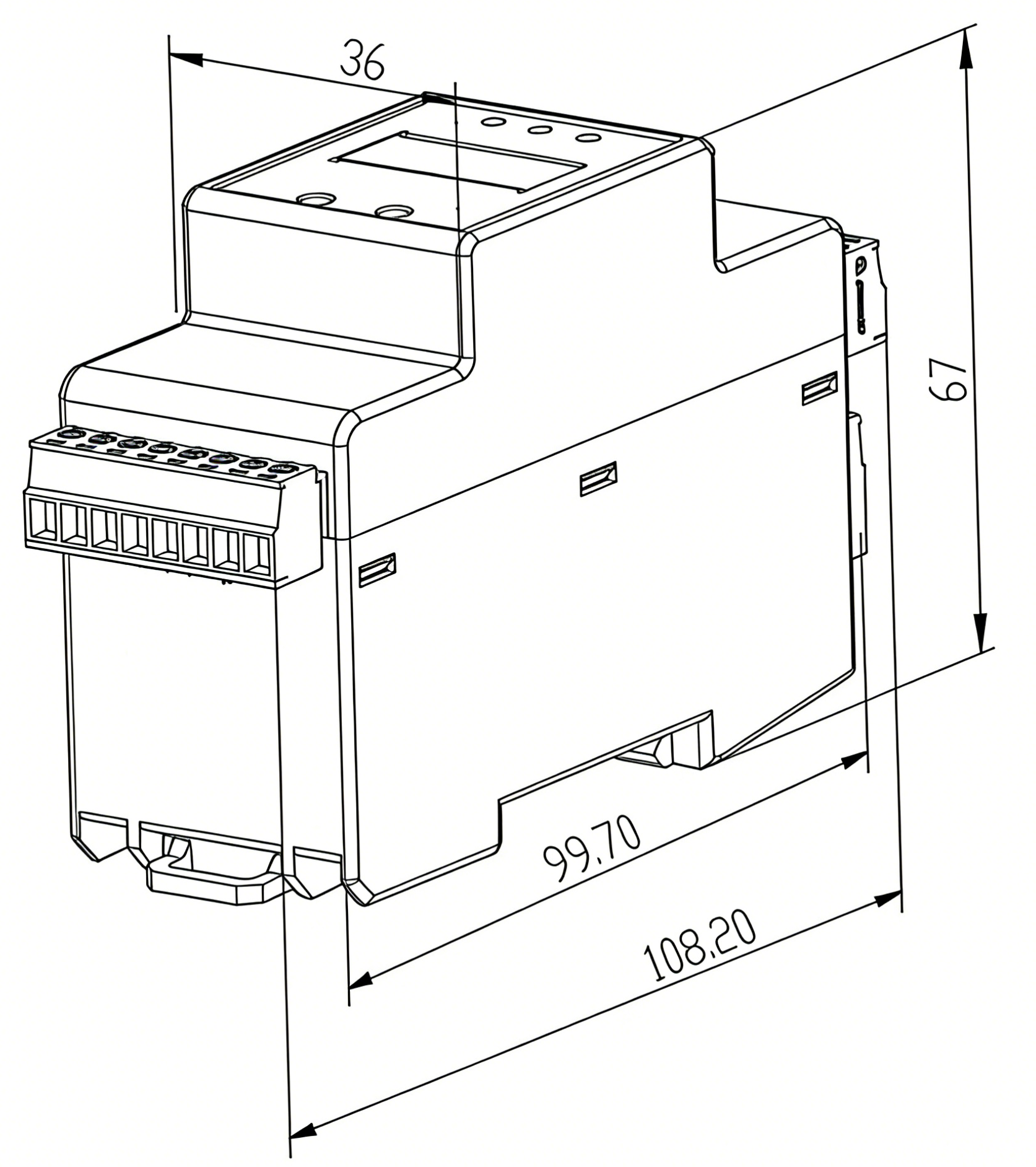

Installation dimension drawing

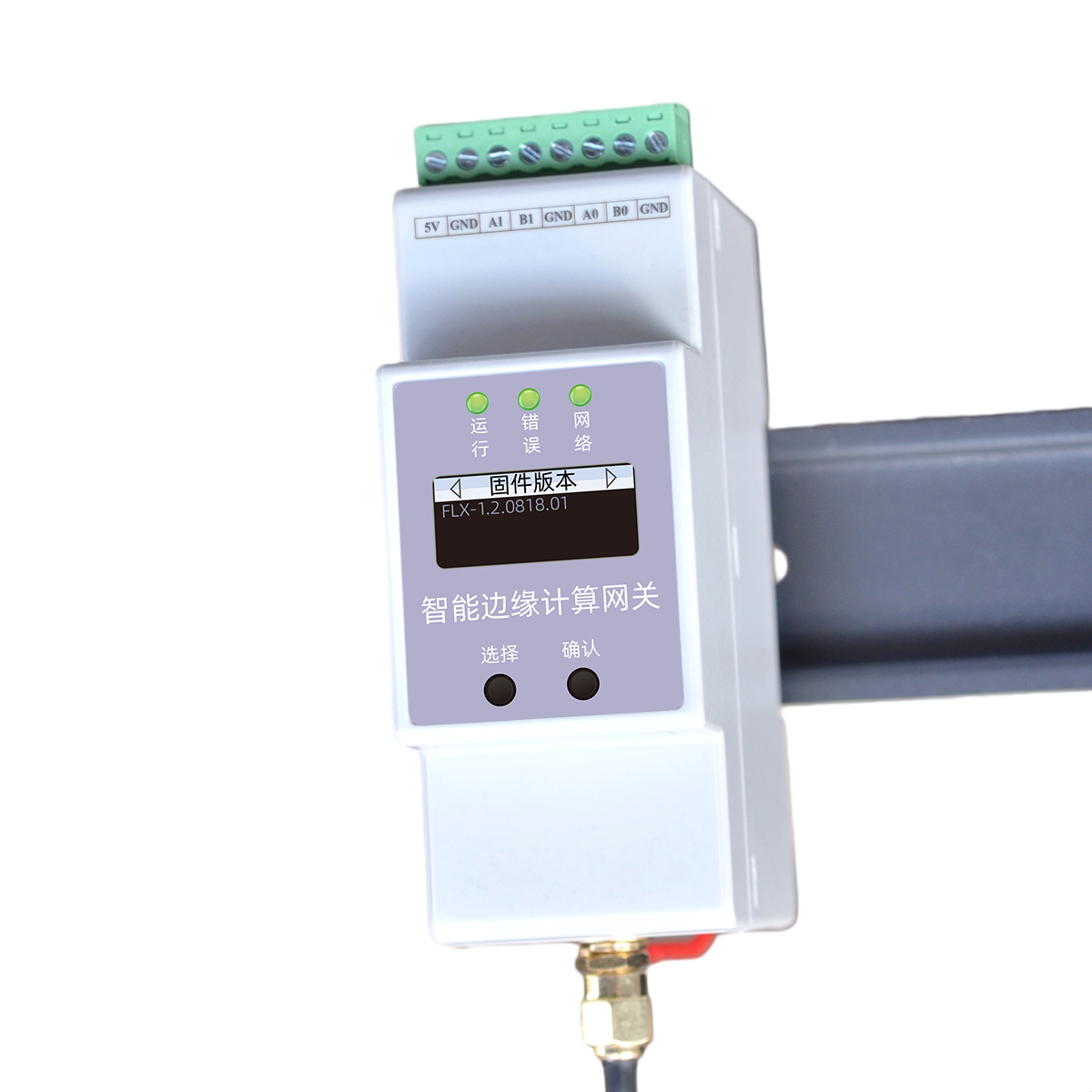

36mm width 110mm height 69mm depth 35mm standard DIN rail b

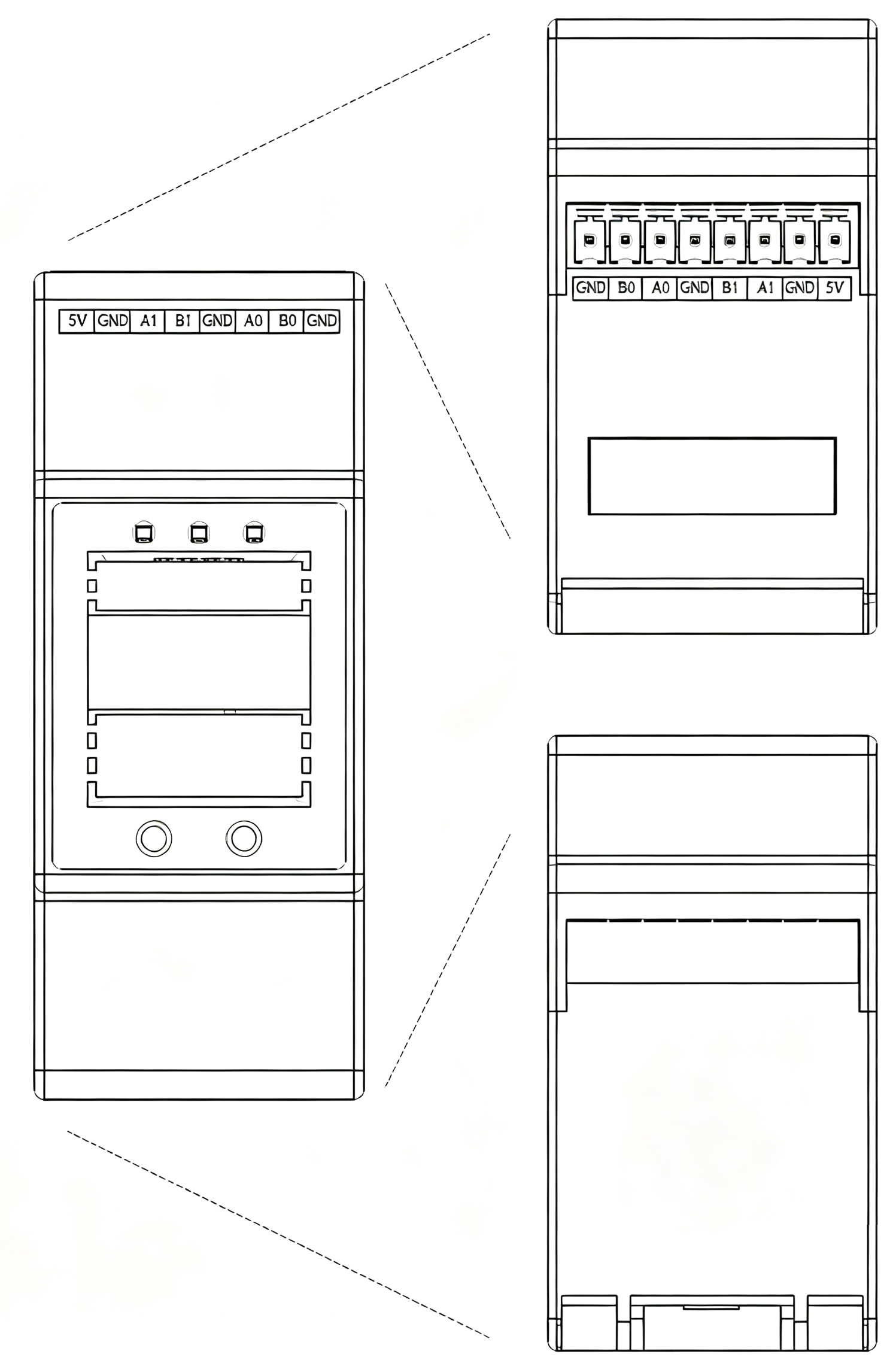

Interface description
Wiring definition Terminal Definition 5V 5V DC power input GND 0V A0 RS485 A terminal B0 RS485 B terminal A1 RS485 A terminal B1 RS485 B terminal
| Terminal | Definition |
| 5V | 5V DC power input |
| GND | 0V |
| A0 | RS485 A terminal |
| B0 | RS485 B terminal |
| A1 | RS485 A terminal |
| B1 | RS485 B terminal |
Key Points
Definition: The ESX smart edge computing gateway is an edge gateway device in the FEXLINK electrical safety series, responsible for local data aggregation and edge computing. Core capabilities: downstream connection of electrical safety terminals such as ESA/ESB/ESC/ESF, upstream upload via Ethernet/Wi-Fi/4G, and support for local rule-based linkage. Applicable scenarios: power distribution rooms, industrial parks and other scenarios where multiple electrical safety terminals need to be aggregated and connected to the cloud platform. Related products: ESA electrical safety monitoring terminal, ESX intelligent edge computing gateway, CW edge computing gateway.
