ESI Digital Status Detector

ESI Series

8-channel dry-contact switch inputs, precise status monitoring, correction algorithm + high-speed sampling, 1 relay output with linkage control.

8 DIsDry contactStatus monitoringLinkage control

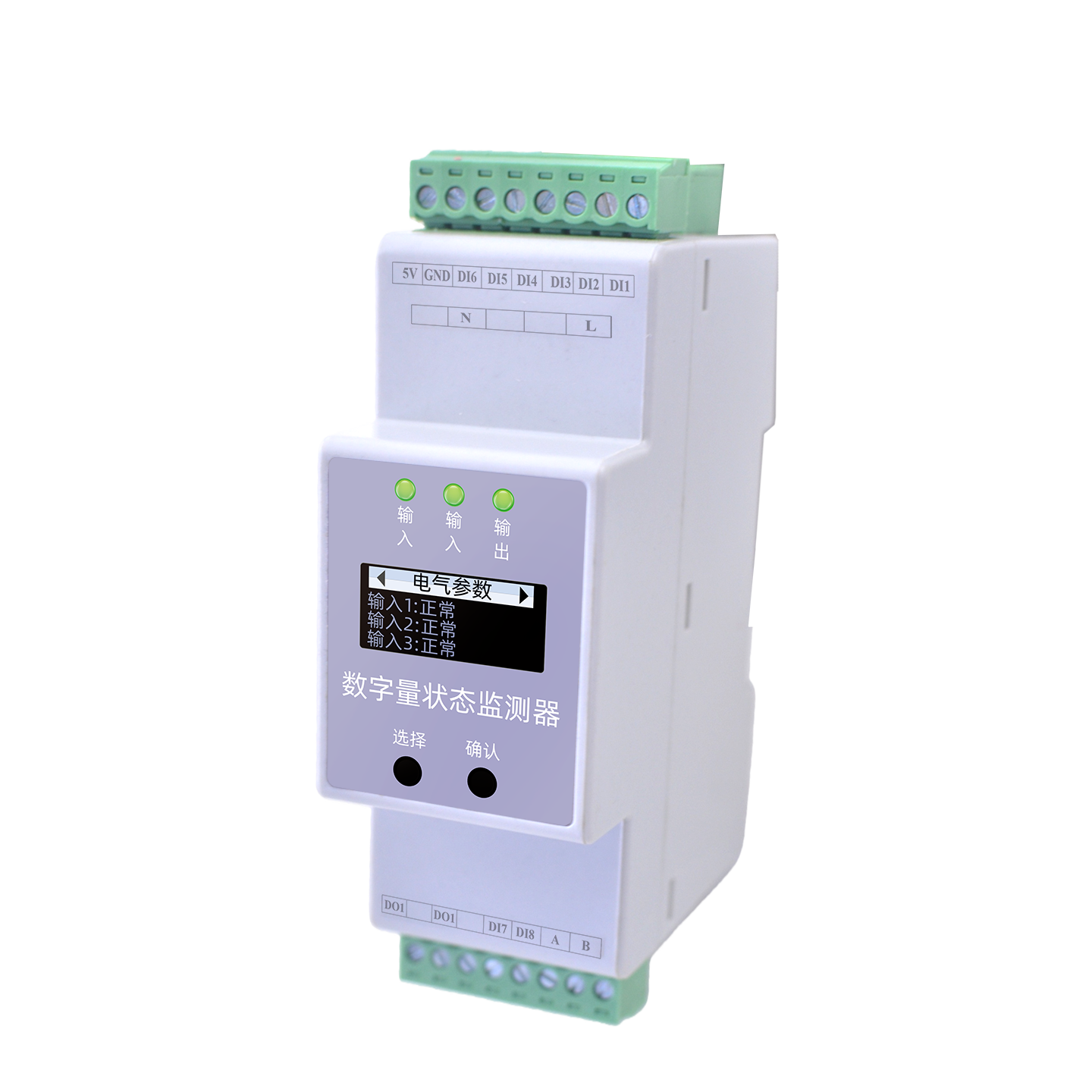

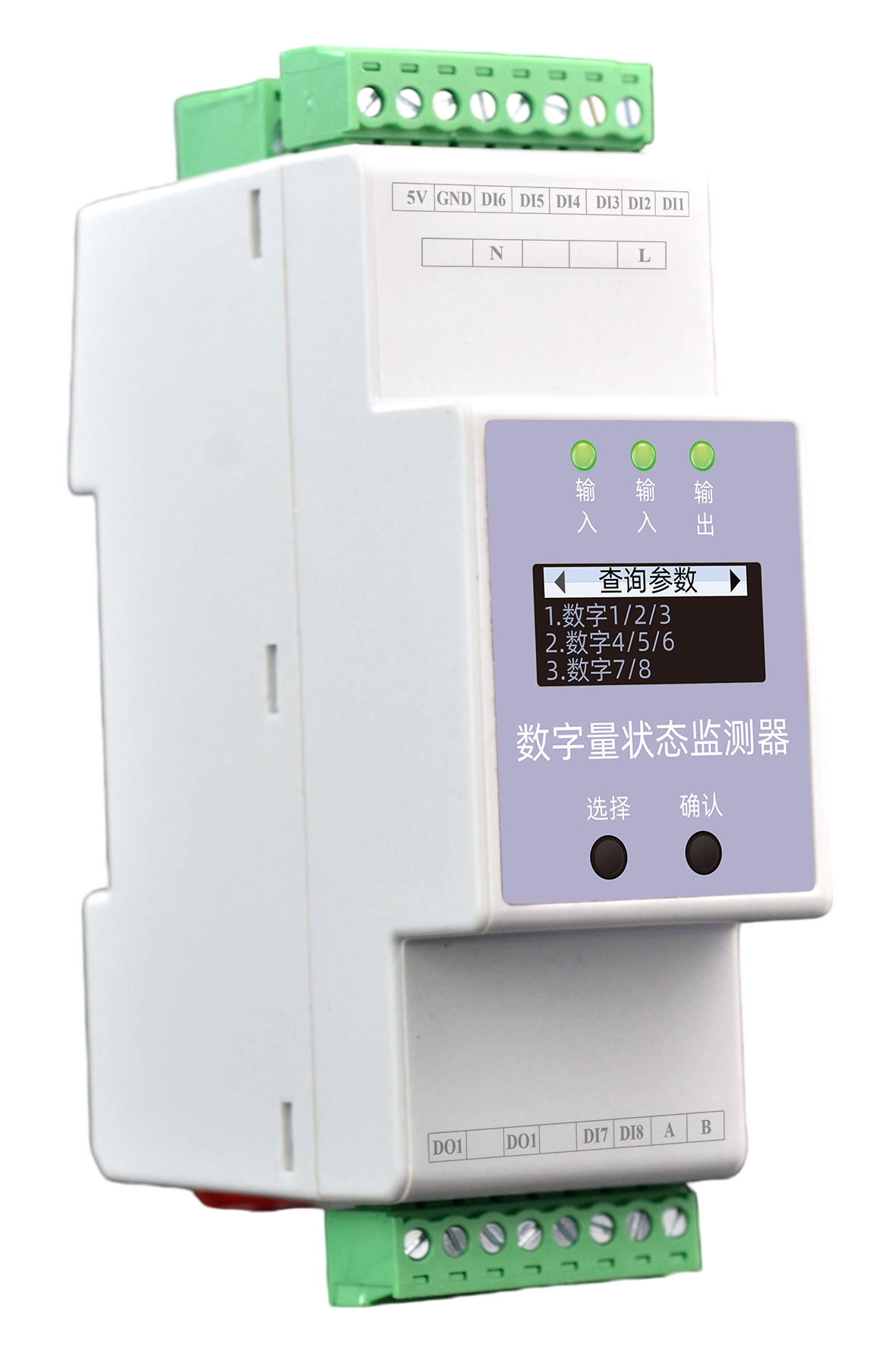

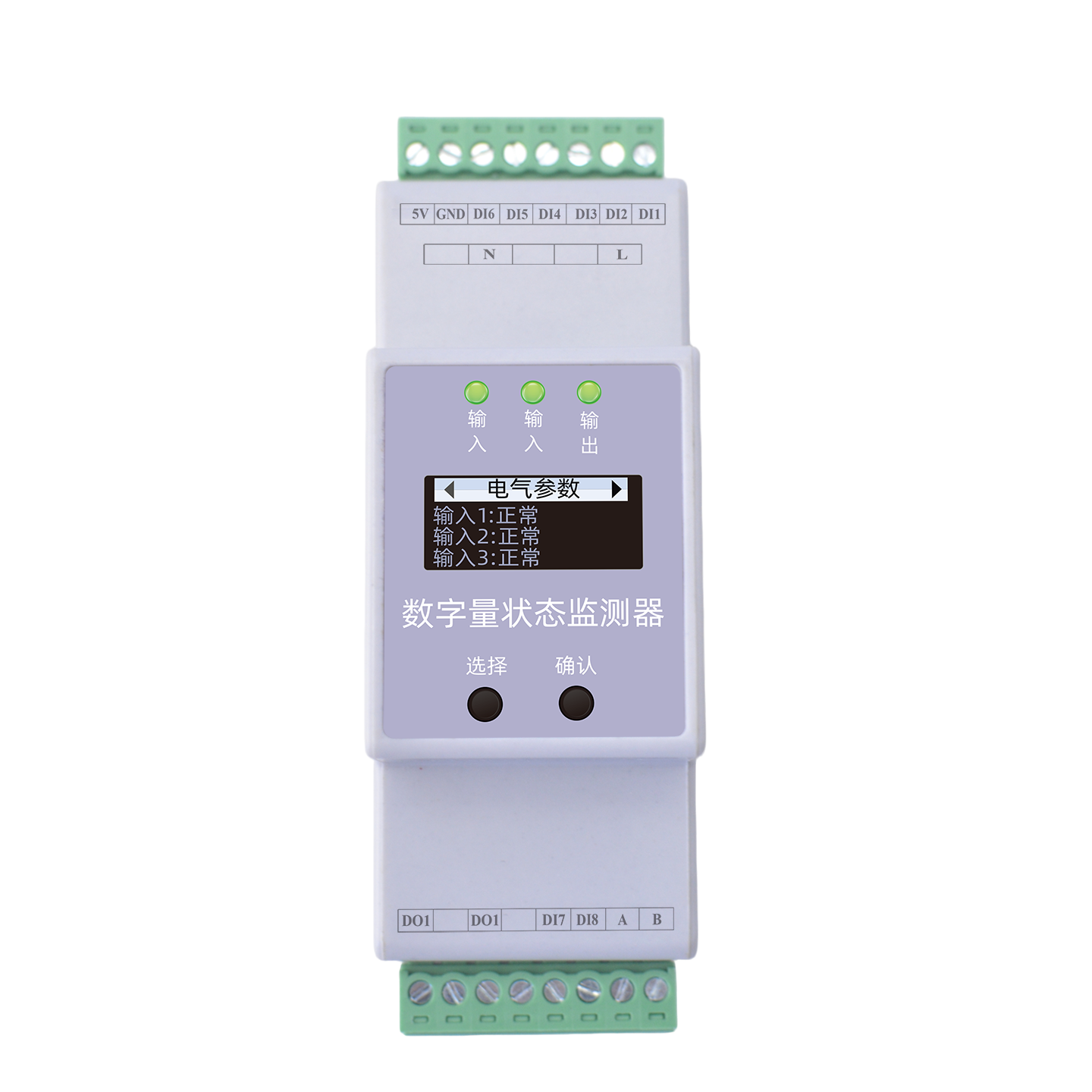

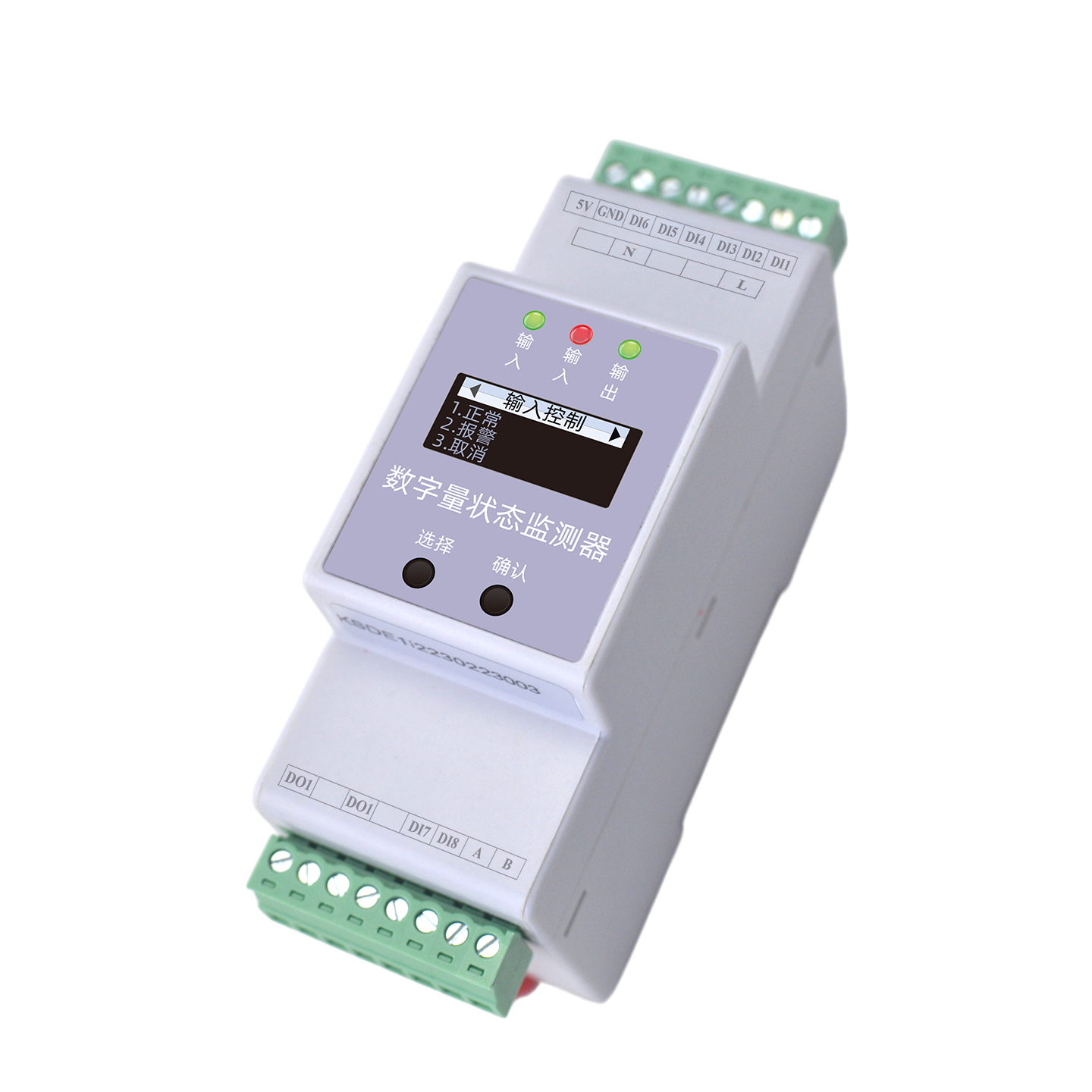

ESI Digital Status Detector

Product Overview

The ESI Digital Status Monitor uses proprietary patented software algorithms and embedded programs, paired with industrial-grade measurement and control chips, to accurately deliver data processing, predictive analysis and more. Integrating “measurement, control, transmission and intelligence” in one device, it is widely used in military, petrochemical, construction, industrial parks, railways, ports, airports, agriculture, mining, equipment, meteorology, water utilities, environmental protection, new energy and other fields. With error-correction algorithms, high-speed sampling and other technologies, it thoroughly resolves existing problems such as “no alarm” and “false alarm”, making data “trustworthy” and “intelligently controllable”.

Core Monitoring Capabilities

8 channels of dry-contact digital input with independent configuration for accurate status monitoring. Error-correction algorithm + high-speed sampling for accurate, fast and stable data with early prediction. 1 relay output with linkage control support for rapid response to site applications. OLED display + physical buttons, RS485 communication, Modbus protocol, 36mm compact width. Product Features

Data Generated

8 DIsDry contactStatus monitoringLinkage control

Product Features

Accurate Data

The high-speed chip captures key parameters accurately, quickly and stably and enables early prediction, while discarding useless parameters such as current and voltage monitoring.

Enhanced Key Parameters

Split-core high-precision sensors run stably under strong electromagnetic interference.

All-Weather Sensors

Supports three channels of independent residual current monitoring, 2 DI inputs, 1 relay output and threshold setting, allowing more monitoring functions and channels to be added quickly based on site application characteristics.

Complete Data Acquisition

Supports linkage control; standard OLED display and physical buttons for convenient on-site query and setting; RS485 communication, Modbus protocol; 36mm compact width — easy to deploy even in the tightest spaces.

Compact, Flexible and Convenient

36mm compact width design with DIN rail mounting, adapting to all kinds of compact installation scenarios. Selection Guide

System Topology

Perception LayerElectrical Parameters · Leakage Detection · Temperature · Arc · Lightning Current · SPD StatusEdge LayerEdge Gateway · Smart Circuit Breaker · Protocol Acquisition · Rule EnginePlatform LayerFEXLINK Cloud · W-Link · Device Access · Data StorageApplication LayerIndustrial AI Analysis · Virtual Power Plant · Energy Monitoring · Carbon Assets · Carbon-Neutral Park

Selection Guide

Model Naming Rules

ESI - 1 O 1 1 0 - R ESI Product Input monitoring module 1 Power supply 1=DC5V / 2=AC220V O Display O=OLED 1 Input channels 1=8 channels 1 Input mode 1=dry contact input, built-in power supply 0 Reserved 0=Reserved R Communication R=RS485 (Modbus) Model Power Supply Display Digital Input Relay Output RS485/MODBUS ESI-12110-R External 5V supply OLED 8 1 Supported ESI-22110-R 220V OLED 8 1 Supported Technical Parameters

ModelPower Supply / Display / Digital Input / Relay Output / RS485/MODBUS
ESI-12110-RExternal 5V supply / OLED / 8 / 1 / Supported
ESI-22110-R220V / OLED / 8 / 1 / Supported

Technical Parameters

Basic Parameters

Operating voltage DC 4.75~5.25V (5V) or AC 180~250V (220V) Power consumption ≤2W Operating temperature -20℃~70℃ Operating humidity <95% Weight 150g Dimensions 36*110*69mm (L×W×H) Enclosure material Thermoplastic material UL94V0 Protection rating IP20 Mounting method Standard 35mm DIN rail Display OLED Communication RS485 Communication protocol Modbus protocol

Operating voltageDC 4.75~5.25V (5V) or AC 180~250V (220V)
Power consumption≤2W
Operating temperature-20℃~70℃
Operating humidity<95%
Weight150g
Dimensions36*110*69mm (L×W×H)
Enclosure materialThermoplastic material UL94V0
Protection ratingIP20
Mounting methodStandard 35mm DIN rail
DisplayOLED
CommunicationRS485
Communication protocolModbus protocol

Monitoring Functions

Digital input Dry contact input, built-in power supply Digital output Relay output; contact capacity: AC250V/3A, DC30V/3A; normally open contact Installation Instructions

Digital inputDry contact input, built-in power supply
Digital outputRelay output; contact capacity: AC250V/3A, DC30V/3A; normally open contact

Installation Instructions

a

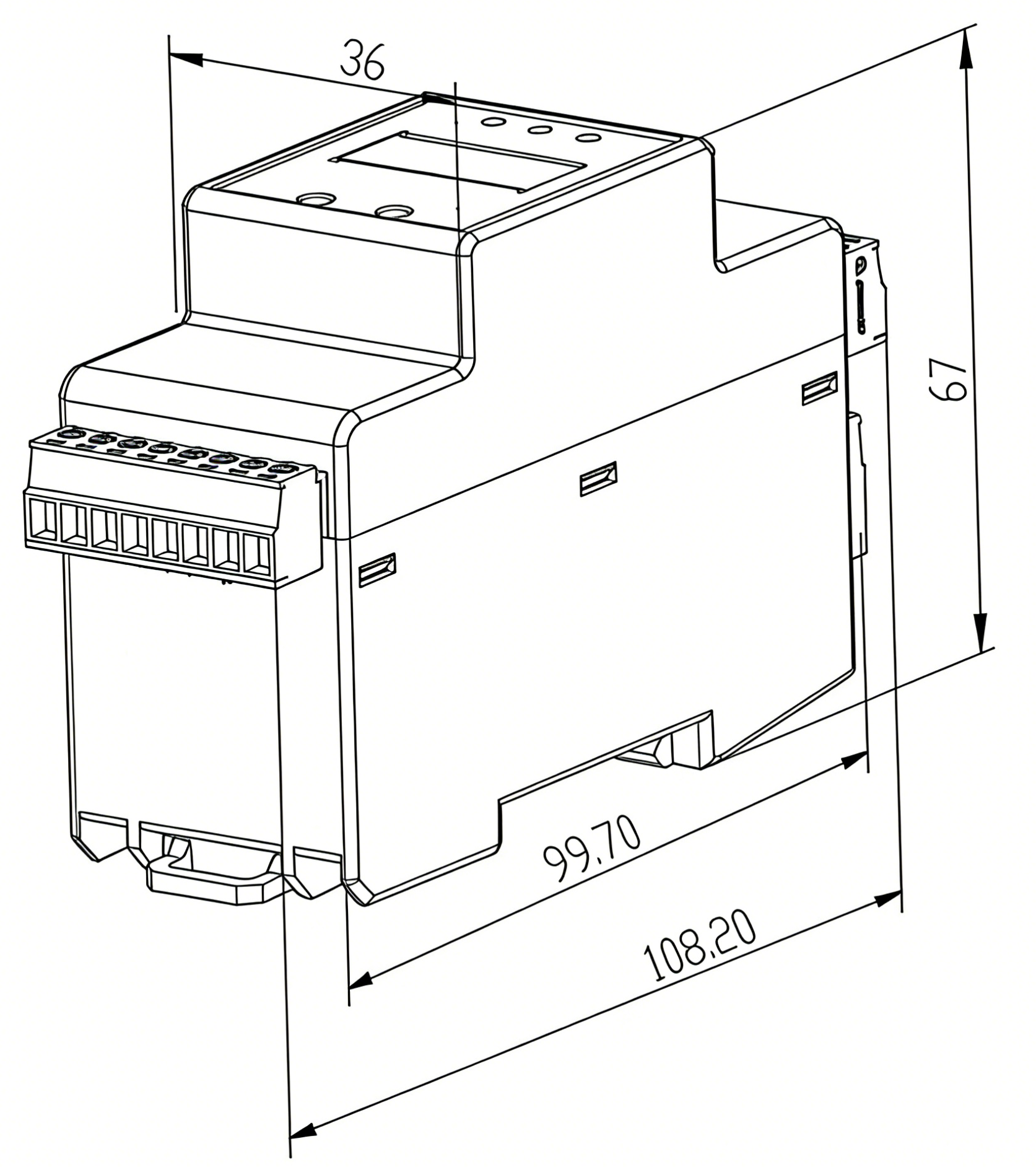

Installation Dimensions

36mm width 110mm height 69mm depth 35mm standard DIN rail b

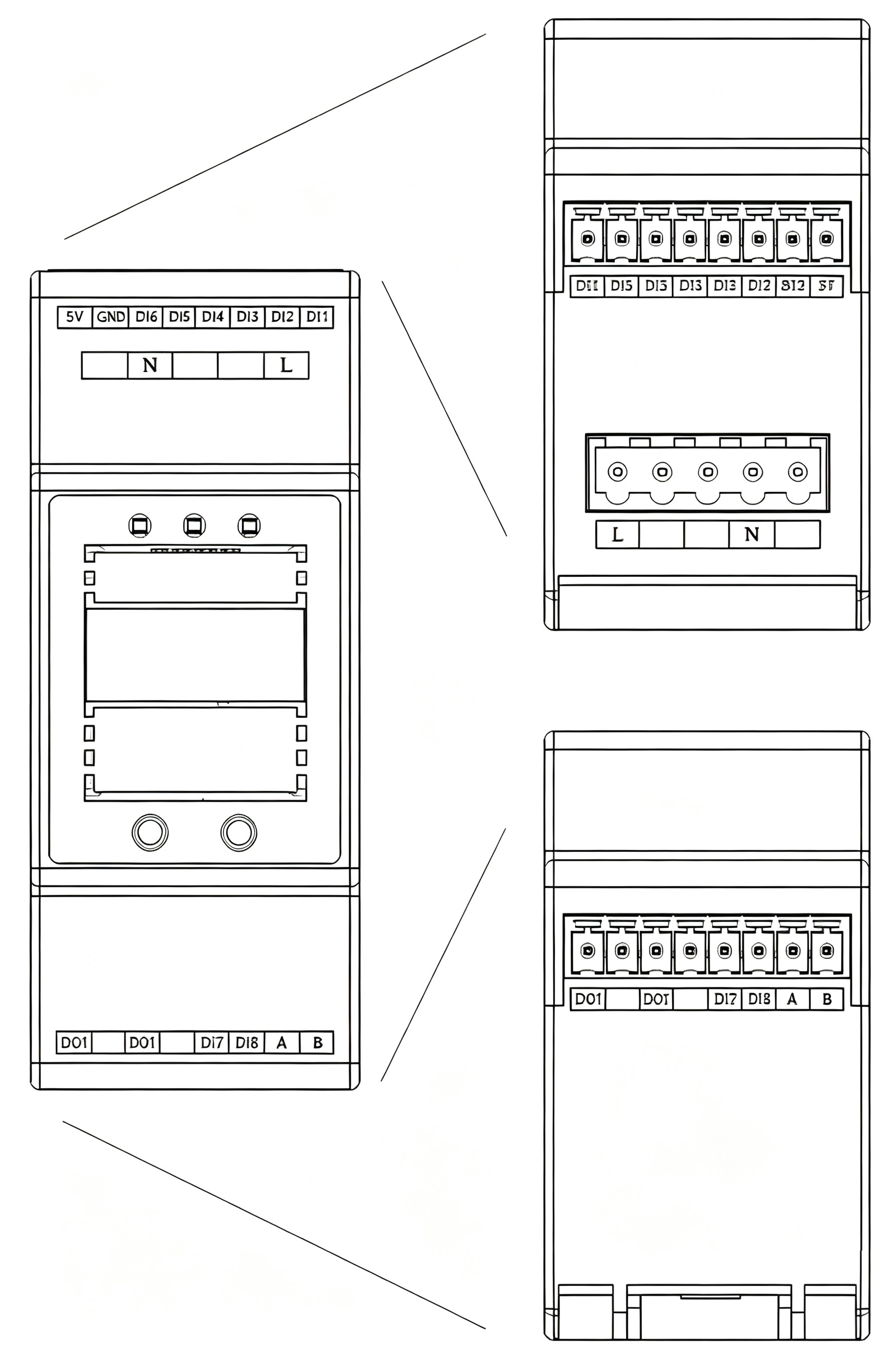

Terminal Description

Wiring definition Terminal Definition L1 Live N Neutral 5V 5V DC power input GND 0V A RS485 A terminal B RS485 B terminal DO1 Output terminal (relay output, directionless) DO1' Output terminal' (relay output, directionless) DI1 Digital input 1 (connect the other end to GND, directionless) DI2 Digital input 2 (connect the other end to GND, directionless) DI3 Digital input 3 (connect the other end to GND, directionless) DI4 Digital input 4 (connect the other end to GND, directionless) DI5 Digital input 5 (connect the other end to GND, directionless) DI6 Digital input 6 (connect the other end to GND, directionless) DI7 Digital input 7 (connect the other end to GND, directionless) DI8 Digital input 8 (connect the other end to GND, directionless) Note: The 220V AC input and the 5V DC power input are mutually exclusive — connect only one.

TerminalDefinition
L1Live
NNeutral
5V5V DC power input
GND0V
ARS485 A terminal
BRS485 B terminal
DO1Output terminal (relay output, directionless)
DO1'Output terminal' (relay output, directionless)
DI1Digital input 1 (connect the other end to GND, directionless)
DI2Digital input 2 (connect the other end to GND, directionless)
DI3Digital input 3 (connect the other end to GND, directionless)
DI4Digital input 4 (connect the other end to GND, directionless)
DI5Digital input 5 (connect the other end to GND, directionless)
DI6Digital input 6 (connect the other end to GND, directionless)
DI7Digital input 7 (connect the other end to GND, directionless)
DI8Digital input 8 (connect the other end to GND, directionless)

Key Points

Definition: The ESI Digital Status Monitor is a FEXLINK electrical monitoring device for switch/digital signal acquisition. Core capabilities: Supports multi-channel digital input acquisition, monitoring the switching states of circuit breakers, contactors, relays and more, with RS485 upload. Application scenarios: Suitable for digital signal monitoring scenarios such as circuit breaker status in distribution cabinets and equipment operating status. Related products: ESA electrical safety monitoring terminal, FG intelligent gateway, SFA multi-factor measurement and control unit.

FAQ

The ESI Digital Status Monitor is a FEXLINK electrical monitoring device for switch/digital signal acquisition.
It is suitable for digital signal monitoring scenarios such as circuit breaker status in distribution cabinets and equipment operating status.
Compared with analog monitoring, the ESI focuses on digital signal acquisition, suitable for discrete signals such as switch states and alarm contacts.
Mount it on a DIN rail inside the distribution cabinet, connect digital signals to the corresponding terminals, and connect it to the RS485 bus.
Submit your requirements via the contact page on the FEXLINK website, or call 0755-8653 6148 to book a demo and selection consultation. Our engineers will provide a matching solution and quotation based on your application scenario.
